Fuse link VVA3 24kV/20A 004251109
Specifications
- ETI Code:
- 004251109
- Description:
- VVA3 24kV/20A
- Class name:
- Fuse link
- efuse:
- 1
- Cold resistance (mΩ):
- 76
- Rated minimum breaking current (A):
- 70
- Rated current (A):
- 20
- Type:
- NEW VVA without striker
- Size:
- 442
- Characteristics:
- Other
- Rated AC voltage (V):
- 24000
- Indicator:
- Without
- Breaking capacity AC (kA):
- 63
- Power dissipation (W):
- 39.5
- Application:
- transformer protection, motor protection, capacitor bank protection, installation in ring main unit
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895912835
- Net weight of the product
- 2.4 kg
- Customs tariff
- 85351000
- logis_net_width
- 56 mm
- logis_net_height
- 442 mm
- logis_net_depth
- 56 mm
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895912842
- Transport packaging weight
- 7.67 kg
- Pallet quantity
- 108
ETIM Clasification
- Classification
- EC003507
- Class name
- Medium-/high voltage fuse
- Type of fuse status indicator
- Without
- Construction size
- 442
- Max. rated operation voltage Ue AC
- 24000
- Rated current
- 20A
- Rated voltage
- 24kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 442mm
- Diameter
- 53mm
- Performance category according to IEC 60282-1
- Back-up
- Standard
- IEC
- Installation technique
- Air
Characteristic
Images & Diagrams
Software & drivers
Configurator
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Technical video
Accessories 3
>
>
0

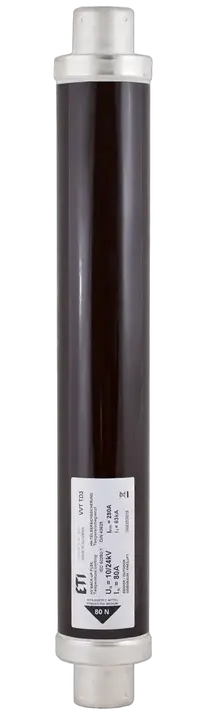

VVA3 24kV/20A
