004251112

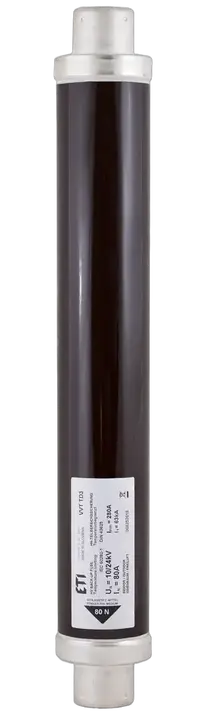

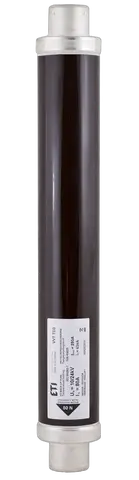

VVA3 24kV/32A Fuse link
- ETI Code:
- 004251112
- Type description:
- NEW VVA without striker
- Fuse type:
- NEW VVA without striker
- Rated AC voltage:
- 24000 V
- Size:
- 442
- Rated current:
- 32 A
- Indicator:
- Without
- Breaking capacity AC:
- 63 kA
- Rated minimum breaking current:
- 110 A
- Cold resistance:
- 52 mΩ
- Power dissipation:
- 79 W
4 Documents
15 Logistics
Product
- EAN code for a single product
- 3838895912897
- Net weight of the product
- 2.4 kg
- Net width
- 56 mm
- Net height
- 508 mm
- Net depth
- 56 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 3 pcs
- EAN code for a transport packaging
- 3838895912903
- Transport packaging weight
- 7.54 kg
- Transport Packaging Dimensions Height
- 0.09 m
- Transport Packaging Dimensions Width
- 0.56 m
- Transport Packaging Dimensions Depth
- 0.28 m
- Transport packaging volume
- 0.014 m³
- Pallet quantity
- 78 pcs
- Customs tariff
- 85351000
13 ETIM
- Performance category according to IEC 60282-1
- Back-up
- Voltage type
- AC
- Application
- Other
- Installation technique
- Air
- Standard
- IEC
- Length
- 442 mm
- Breaking capacity
- 63 kA
- Diameter
- 53 mm
- Rated voltage
- 24 kV
- Rated current
- 32 A
- Utilization category
- Other
- Rated frequency(Min)
- 45 Hz
- Rated frequency(Max)
- 60 Hz
ETIM Classification – Version 9.0
