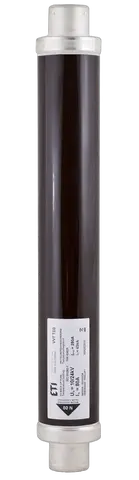

Fuse link VVA3 24kV/40A 004251113

Specifications

ETI Code:
004251113
Description:
VVA3 24kV/40A
Class name:
Fuse link
Rated minimum breaking current (A):
140
Cold resistance (mΩ):
38
Rated current (A):
40
Type:
NEW VVA without striker
Size:
442
Characteristics:
Other
Rated AC voltage (V):
24000
Indicator:
Without
Breaking capacity AC (kA):
63
Power dissipation (W):
94
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895912910
Net weight of the product
2.4 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895912910
Basic packaging weight
2.4 kg
Basic packaging volume
4.08

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895912927
Transport packaging weight
7.67 kg
Transport packaging volume
12.26
Pallet quantity
108
Pallet volume
441.36
Classification
EC003507
Class name
Medium-/high voltage fuse
Breaking capacity
63kA
Diameter
53mm
Installation technique
Air
Length
442mm
Performance category according to IEC 60282-1
Back-up
Rated current
40A
Rated frequency
45…60Hz
Rated voltage
24kV
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
