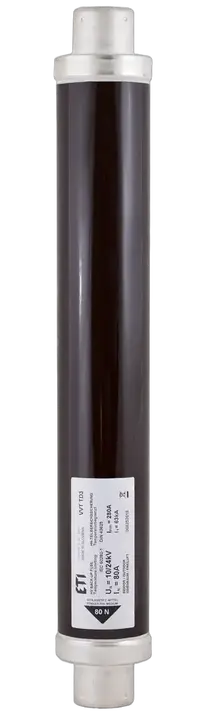

Fuse link VVA3 24kV/63A 004251115

Specifications

ETI Code:
004251115
Description:
VVA3 24kV/63A
Class name:
Fuse link
Rated minimum breaking current (A):
220
Cold resistance (mΩ):
21.5
Rated current (A):
63
Type:
NEW VVA without striker
Size:
442
Characteristics:
Other
Rated AC voltage (V):
24000
Indicator:
Without
Breaking capacity AC (kA):
63
Power dissipation (W):
137
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895912958
Net weight of the product
4 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895912958
Basic packaging weight
4 kg
Basic packaging volume
6.99

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895912965
Transport packaging weight
12.66 kg
Transport packaging volume
20.98
Pallet quantity
60
Pallet volume
419.6
Classification
EC003507
Class name
Medium-/high voltage fuse
Application
Other
Breaking capacity
63kA
Diameter
68mm
Installation technique
Air
Length
442mm
Nominal rated current
63A
Nominal rated frequency
45…60Hz
Nominal rated voltage
24kV
Performance category according to IEC 60282-1
Back-up
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
