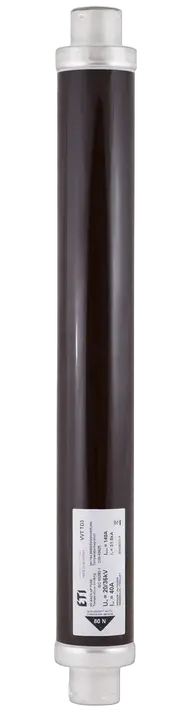

Fuse link VVA3 36kV/2A 004261103

Specifications

ETI Code:
004261103
Description:
VVA3 36kV/2A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
2900
Rated current (A):
2
Type:
NEW VVA without striker
Size:
537
Characteristics:
Other
Rated AC voltage (V):
36000
Indicator:
Without
Breaking capacity AC (kA):
31.5
Power dissipation (W):
17
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895913078
Net weight of the product
2.85 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895913078
Basic packaging weight
2.85 kg
Basic packaging volume
8.41

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895913085
Transport packaging weight
9.29 kg
Transport packaging volume
25.24
Pallet quantity
81
Pallet volume
681.48
Classification
EC003507
Class name
Medium-/high voltage fuse
Application
Other
Breaking capacity
31.5kA
Diameter
53mm
Installation technique
Air
Length
537mm
Nominal rated current
2A
Nominal rated frequency
45…60Hz
Nominal rated voltage
36kV
Performance category according to IEC 60282-1
Back-up
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
