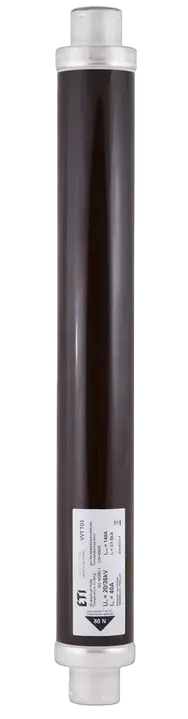

Fuse link VVA3 36kV/16A 004261108

Specifications

ETI Code:
004261108
Description:
VVA3 36kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
177
Rated current (A):
16
Type:
NEW VVA without striker
Size:
537
Characteristics:
Other
Rated AC voltage (V):
36000
Indicator:
Without
Breaking capacity AC (kA):
31.5
Power dissipation (W):
60
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895913177
Net weight of the product
2.85 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895913177
Basic packaging weight
2.85 kg
Basic packaging volume
8.41

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895913184
Transport packaging weight
9.29 kg
Transport packaging volume
25.24
Pallet quantity
81
Pallet volume
681.48
Classification
EC003507
Class name
Medium-/high voltage fuse
Breaking capacity
31.5kA
Diameter
53mm
Installation technique
Air
Length
537mm
Performance category according to IEC 60282-1
Back-up
Rated current
16A
Rated frequency
45…60Hz
Rated voltage
36kV
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
