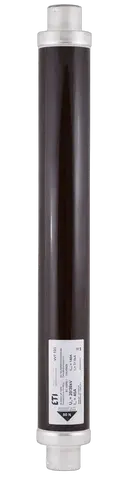

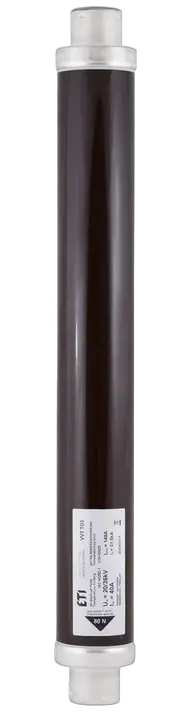

Fuse link VVA3 36kV/32A 004261112

Specifications

ETI Code:
004261112
Description:
VVA3 36kV/32A
Class name:
Fuse link
efuse:
1
Cold resistance (mΩ):
75
Rated minimum breaking current (A):
116
Rated current (A):
32
Type:
NEW VVA without striker
Size:
537
Characteristics:
Other
Rated AC voltage (V):
36000
Indicator:
Without
Breaking capacity AC (kA):
31.5
Power dissipation (W):
120
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895913252
Net weight of the product
4.55  kg
Customs tariff
85351000
logis_net_width
72  mm
logis_net_height
537  mm
logis_net_depth
72  mm

Level 1 Packaging

EAN code for a basic packaging


Level 2 Packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895913269
Transport packaging weight
14.39  kg
Pallet quantity
54
Classification
EC003507
Class name
Medium-/high voltage fuse
Construction size
537
Max. rated operation voltage Ue AC
36000
Type of fuse status indicator
Without
Rated current
32A
Rated voltage
36kV
Voltage type
AC
Rated frequency
45…60Hz
Breaking capacity
31.5kA
Utilization category
Other
Application
Other
Length
537mm
Diameter
68mm
Performance category according to IEC 60282-1
Back-up
Standard
IEC
Installation technique
Air
ETIM Classification – Version 7.0
