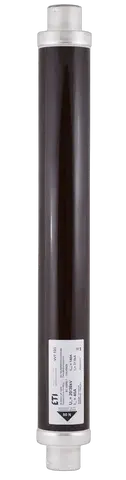

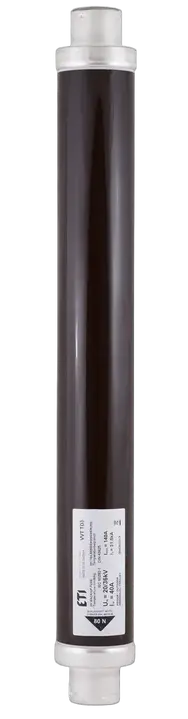

Fuse link VVA3 36kV/50A 004261114

Specifications

ETI Code:
004261114
Description:
VVA3 36kV/50A
Class name:
Fuse link
Rated minimum breaking current (A):
175
Cold resistance (mΩ):
41
Rated current (A):
50
Type:
NEW VVA without striker
Size:
537
Characteristics:
Other
Rated AC voltage (V):
36000
Indicator:
Without
Breaking capacity AC (kA):
31.5
Power dissipation (W):
150
Application:
transformer protection, motor protection, capacitor bank protection, installation in ring main unit

Documents

Product

EAN code for a single product
3838895913290
Net weight of the product
6.75 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895913290
Basic packaging weight
6.75 kg
Basic packaging volume
8.41

Transport packaging

Transport packaging quantity
3
EAN code for a transport packaging
3838895913306
Transport packaging weight
20.99 kg
Transport packaging volume
25.24
Pallet quantity
54
Pallet volume
454.32
Classification
EC003507
Class name
Medium-/high voltage fuse
Breaking capacity
31.5kA

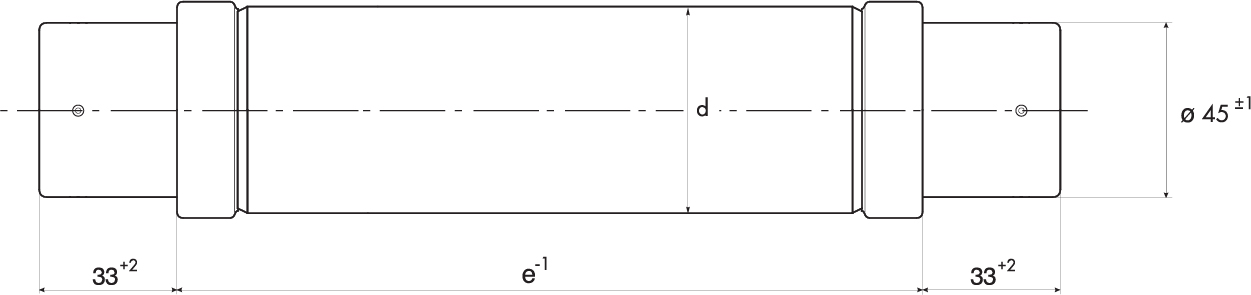

Diameter
83,5mm
Installation technique
Air
Length
537mm
Nominal rated current
50A
Nominal rated frequency
45…60Hz
Nominal rated voltage
36kV
Performance category according to IEC 60282-1
Back-up
Standard
IEC
Utilization category
Other
Voltage type
AC
With striker
No
ETIM Classification – Version 7.0
