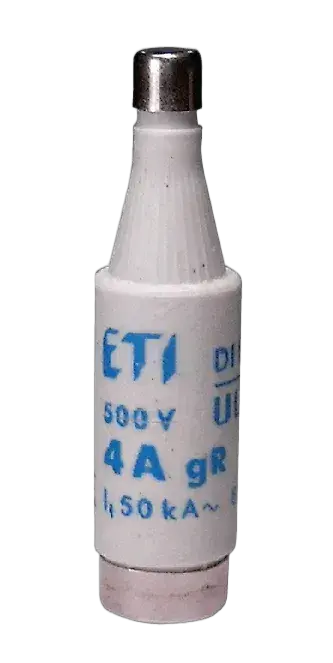

Fuse link DI UQ gR 4A/500V 004321002

Specifications

ETI Code:
004321002
Description:
DI UQ gR 4A/500V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
D
Size:
DI
Rated current (A):
4
Rated AC voltage (V):
500
Rated DC voltage (V):
315
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
E16
Indicator:
Top fuse status indicator
Power dissipation (W):
2,5
Operating joule integral (A2s):
11
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400051967
Net weight of the product
12  g
Customs tariff
85361010
logis_net_width
13  mm
logis_net_height
50  mm
logis_net_depth
13  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895292432
Basic packaging weight
0.11  kg

Level 2 Packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895292449
Transport packaging weight
6  kg
Pallet quantity
60000
Classification
EC000099
Class name
D-system fuse link
Max. rated operation voltage Ue AC
500
Rated voltage DC
315
Application
For protection of semiconductor devices
Breaking capacity
50
Type of fuse status indicator
Top fuse status indicator
Construction size
DI
Rated current
4A
Rated voltage
500V
Colour code
Brown
Utilization category
Other
Release characteristic
Super fast (FF)
ETIM Classification – Version 7.0
