Fuse link DII UQ gR 20A/500V 004322006

Specifications

ETI Code:
004322006
Description:
DII UQ gR 20A/500V
Class name:
Fuse link
Type:
D
Size:
DII
Rated current (A):
20
Rated AC voltage (V):
500
Rated DC voltage (V):
315
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices

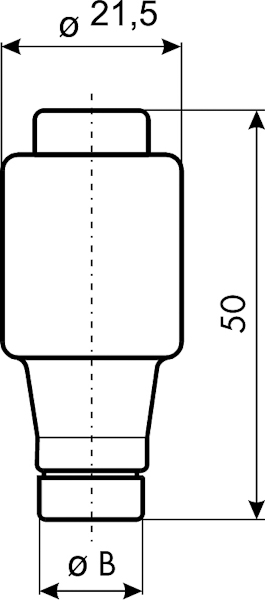

Dimensions:
E27
Indicator:
Top fuse status indicator
Power dissipation (W):
7,3
Operating joule integral (A2s):
139
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895012221
Net weight of the product
0.155 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895012221
Basic packaging weight
0.155 kg
Basic packaging volume
0.138

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895166139
Transport packaging weight
16.13 kg
Transport packaging volume
17.4
Pallet quantity
26000
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Blue
Construction size
DII
Nominal rated current
20A
Nominal rated voltage
500V
Release characteristic
Super fast (FF)
Utilization category
gR (general purpose semiconductor protection)
ETIM Classification – Version 7.0
