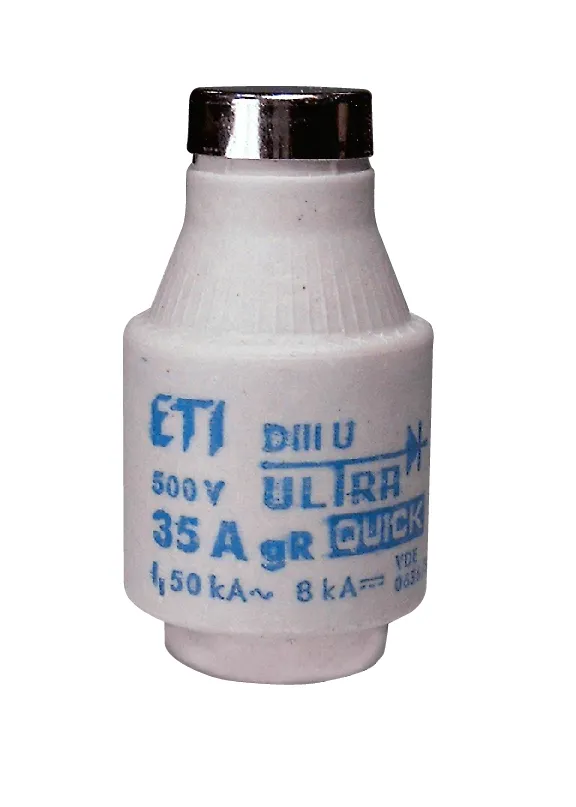

Fuse link DIII UQ gR 35A/500V 004323001

Specifications

ETI Code:
004323001
Description:
DIII UQ gR 35A/500V
Class name:
Fuse link
Type:
D
Size:
DIII
Rated current (A):
35
Rated AC voltage (V):
500
Rated DC voltage (V):
315
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices

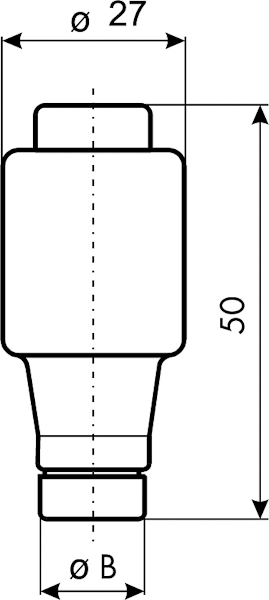

Dimensions:
E33
Indicator:
Top fuse status indicator
Power dissipation (W):
12
Operating joule integral (A2s):
539
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895012245
Net weight of the product
0.246 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895012245
Basic packaging weight
0.246 kg
Basic packaging volume
0.203

Transport packaging

Transport packaging quantity
250
EAN code for a transport packaging
3838895710851
Transport packaging weight
12.6 kg
Transport packaging volume
17.4
Pallet quantity
13000
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Black
Construction size
DIII
Rated current
35A
Rated voltage
500V
Release characteristic
Super fast (FF)
Utilization category
gR (general purpose semiconductor protection)
ETIM Classification – Version 7.0

Images & Diagrams

004323001Fuse link, DIII UQ gR 35A/500VUltra QuickSystem DgR CharacteristicgR CharacteristicD IIID IIIFuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKDIII UQ GR 35A/5Tripping characteristic Super fast (FF)Rated current 35AType DRated voltage 500VSize DIIIProduct group Semiconductor ProtectionCharacteristics gRRated AC voltage 500VRated DC voltage 315VDimensions E33Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 12WCatalogue Group Semiconductor ProtectionStandards IEC 60269-4Operating joule integral 539A2sApplication For protection of semiconductor devicesFuse link DIII D DIII 35A 500V 315V gR
