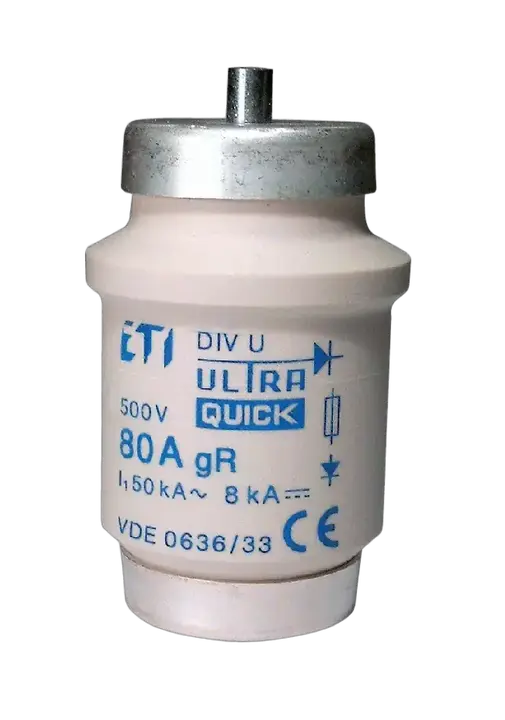

Fuse link DIV UQ gR 80A/500V 004324001

Specifications

ETI Code:
004324001
Description:
DIV UQ gR 80A/500V
Class name:
Fuse link
Type:
D
Size:
DIV
Rated current (A):
80
Rated AC voltage (V):
500
Rated DC voltage (V):
315
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
R1 1/4
Indicator:
Top fuse status indicator
Power dissipation (W):
33
Operating joule integral (A2s):
4.200
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895292555
Net weight of the product
0.4 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895292555
Basic packaging weight
0.4 kg
Basic packaging volume
0.372

Transport packaging

Transport packaging quantity
48
EAN code for a transport packaging
3838895292562
Transport packaging weight
6.8 kg
Transport packaging volume
6.102
Pallet quantity
6480
Pallet volume
823.77
Classification
EC000099
Class name
D-system fuse link
Colour code
Silver
Construction size
DIV
Rated current
80A
Rated voltage
500V
Release characteristic
Super fast (FF)
Utilization category
gR (general purpose semiconductor protection)
ETIM Classification – Version 7.0
