004646525

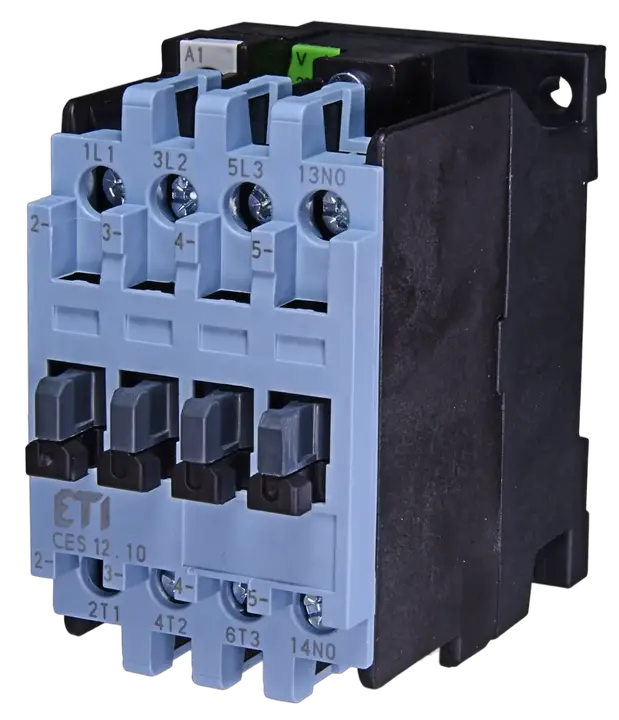

CES 12.10-42V-50/60Hz Motor contactor
- ETI Code:
- 004646525
- Rated operational current Ie at AC1:
- 25 A
- Rated operational current Ie at AC3, 400V:
- 12 A
- Rated operational voltage (AC):
- 690 V
- Rated control circuit voltage Uc (AC):
- 42 V
- Number of poles:
- 3
- No. of aux NO contacts:
- 1
- Function:
- Motor contactor
- Catalogue group:
- CES Motor contactor
21 Logistics
Product
- Net weight of the product
- 0.37 kg
- Net width
- 45 mm
- Net height
- 80.4 mm
- Net depth
- 81.99 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895748373
- Basic packaging weight
- 0.37 kg
- Basic Packaging Dimensions Height
- 89 mm
- Basic Packaging Dimensions Width
- 48 mm
- Basic Packaging Dimensions Depth
- 82 mm
- Basic packaging volume
- 0.35 dm³
Transport Packaging
- Transport packaging quantity
- 18 pcs
- EAN code for a transport packaging
- 3838895748380
- Transport packaging weight
- 7.8 kg
- Transport Packaging Dimensions Height
- 200 mm
- Transport Packaging Dimensions Width
- 200 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 12 dm³
- Pallet quantity
- 1,494 pcs
- Customs tariff
- 85364900
