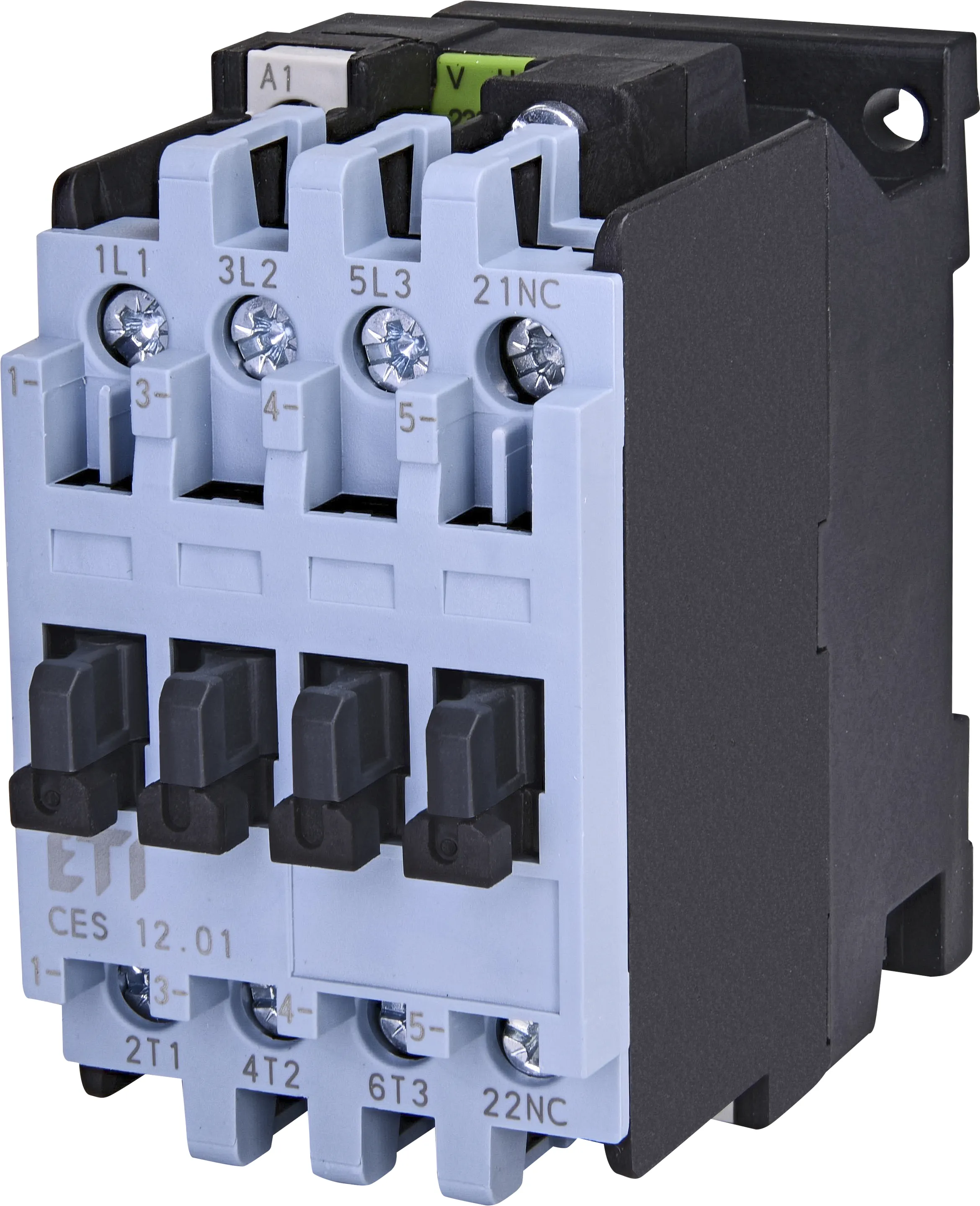

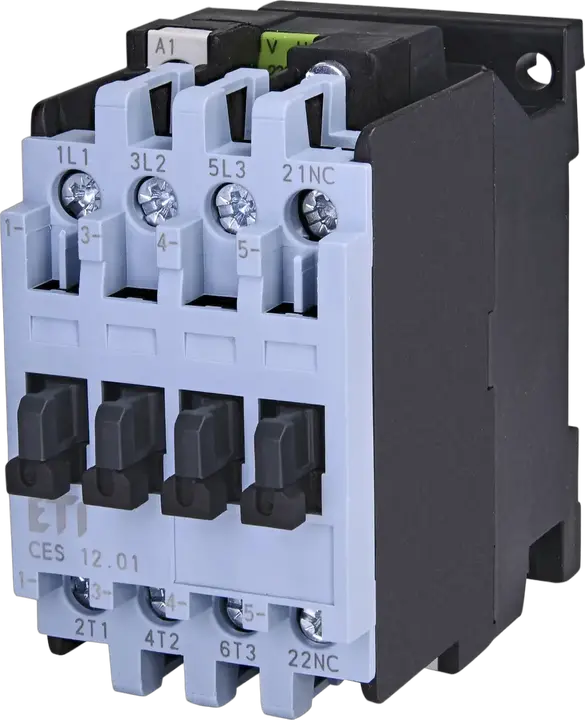

Motor contactor CES 12.01-230V-50/60Hz 004646528
Specifications
- ETI Code:
- 004646528
- Description:
- CES 12.01-230V-50/60Hz
- Class name:
- Motor contactor
- Rated operation current Ie at AC1 (A):
- 25A
- Rated operation current Ie at AC3, 400 V (A):
- 12A
- Rated operational voltage AC (V):
- 690V
- Rated AC control circuit voltage Uc (V):
- 230V
- Number of poles:
- 3
- Number of auxiliary NC contacts:
- 1
- Function:
- Motor contactor
Documents
Logistic Data
Product
- Net weight of the product
- 0.37 kg
- Customs tariff
- 85364900
- logis_net_width
- 45 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 82 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895748434
- Basic packaging weight
- 0.37 kg
Transport packaging
- Transport packaging quantity
- 18
- EAN code for a transport packaging
- 3838895748441
- Transport packaging weight
- 7.8 kg
- Pallet quantity
- 1494
Images & Diagrams
Tags
Accessories 17
>
>
0
CES 12.01-230V-50/60Hz
