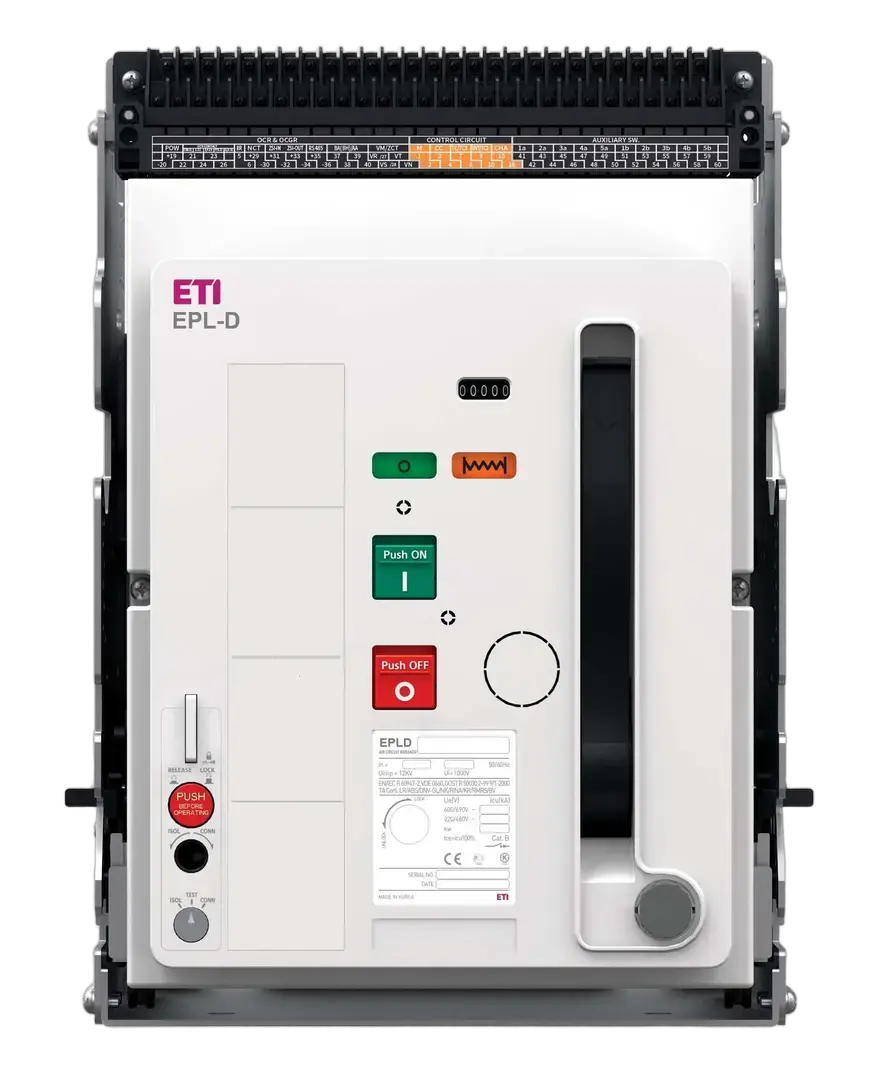

EPL-D-16 4H AD/M2C2S2 Switch disconnector
- ETI Code:
- 004696612
- Application:
- 60947-3
- Rated impulse withstand voltage Uimp:
- 8 kV
- Connection type:
- Rear connection
- Rated operational voltage (AC):
- 690 V
- Number of poles:
- 4
- Standards:
- 60947-3
- Rated current:
- 1600 A
- Catalogue group:
- ETIPOWER
24 Logistics
Product
- Net weight of the product
- 72.93 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400107497
- Basic packaging weight
- 73.43 kg
- Basic Packaging Dimensions Height
- 413 mm
- Basic Packaging Dimensions Width
- 460 mm
- Basic Packaging Dimensions Depth
- 368.4 mm
- Basic packaging volume
- 69.989 dm³
Transport Packaging
- Intermediate packaging quantity
- 1 pcs
- EAN code for a intermediate packaging
- 3838400107503
- Intermediate packaging weight
- 77.93 kg
- Intermediate Packaging Dimensions Height
- 600 mm
- Intermediate Packaging Dimensions Width
- 700 mm
- Intermediate Packaging Dimensions Depth
- 600 mm
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 3838400107510
- Transport packaging weight
- 688 kg
- Transport Packaging Dimensions Height
- 2,140 mm
- Transport Packaging Dimensions Width
- 1,460 mm
- Transport Packaging Dimensions Depth
- 840 mm
- Transport packaging volume
- 2,624.496 dm³
- Pallet quantity
- 6 pcs
- Customs tariff
- 85362090
14 ETIM
- Motor drive optional
- ✓
- Complete device with protection unit
- ✓
- Rated permanent current Iu
- 1,600 A
- Motor drive integrated
- ✓
- Degree of protection (IP)
- IP20
- Type of control element
- Push button
- Position of connection for main current circuit
- Back side
- Integrated earth fault protection
- ✓
- Type of electrical connection of main circuit
- Connection at separate chassis part
- Number of poles
- 4
- Device construction
- Built-in device slide-in technique (withdrawable)
- With switched-off indicator
- ✓
- Rated voltage(Min)
- 690 V
- Rated voltage(Max)
- 690 V
ETIM Classification – Version 9.0
