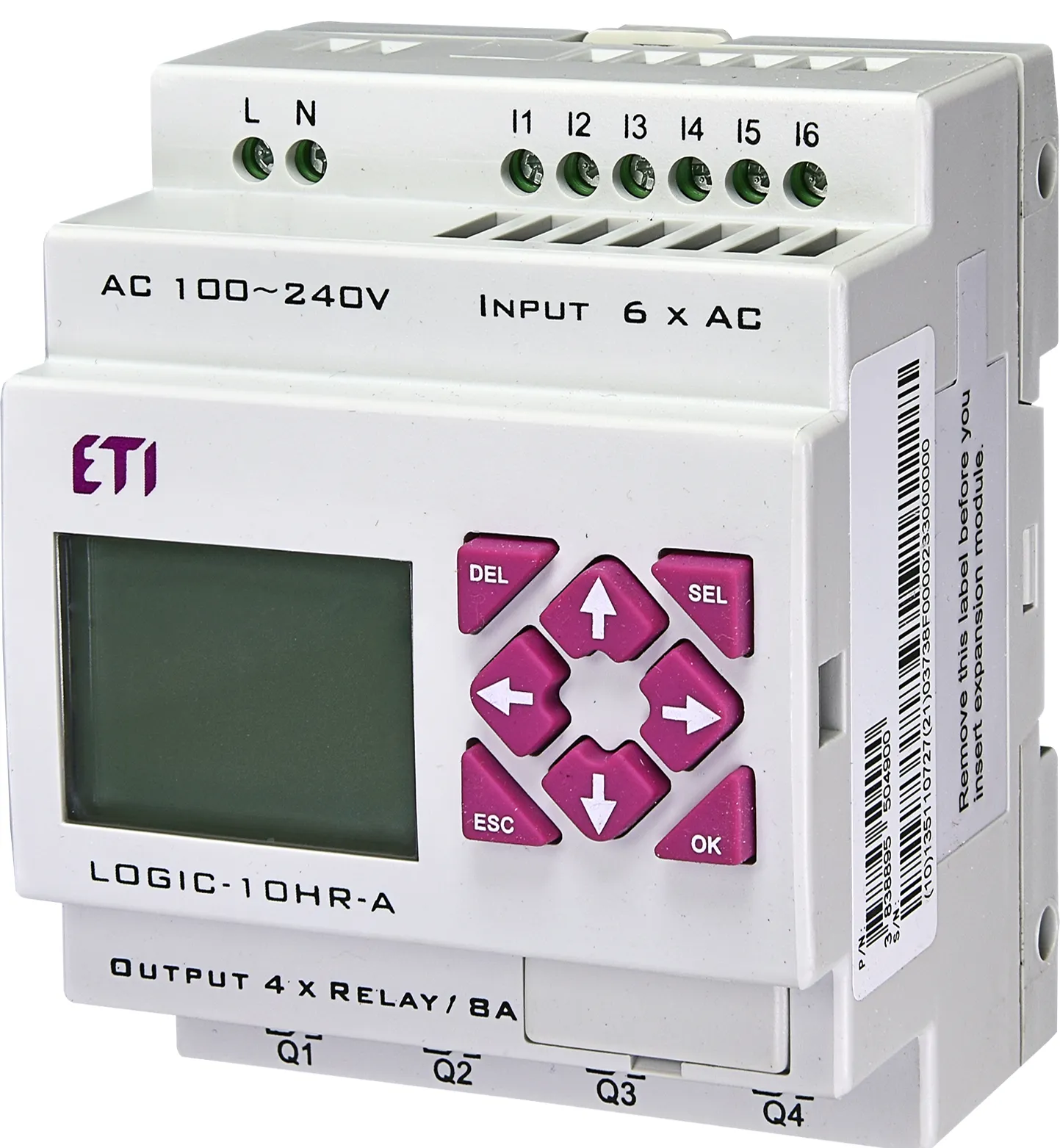

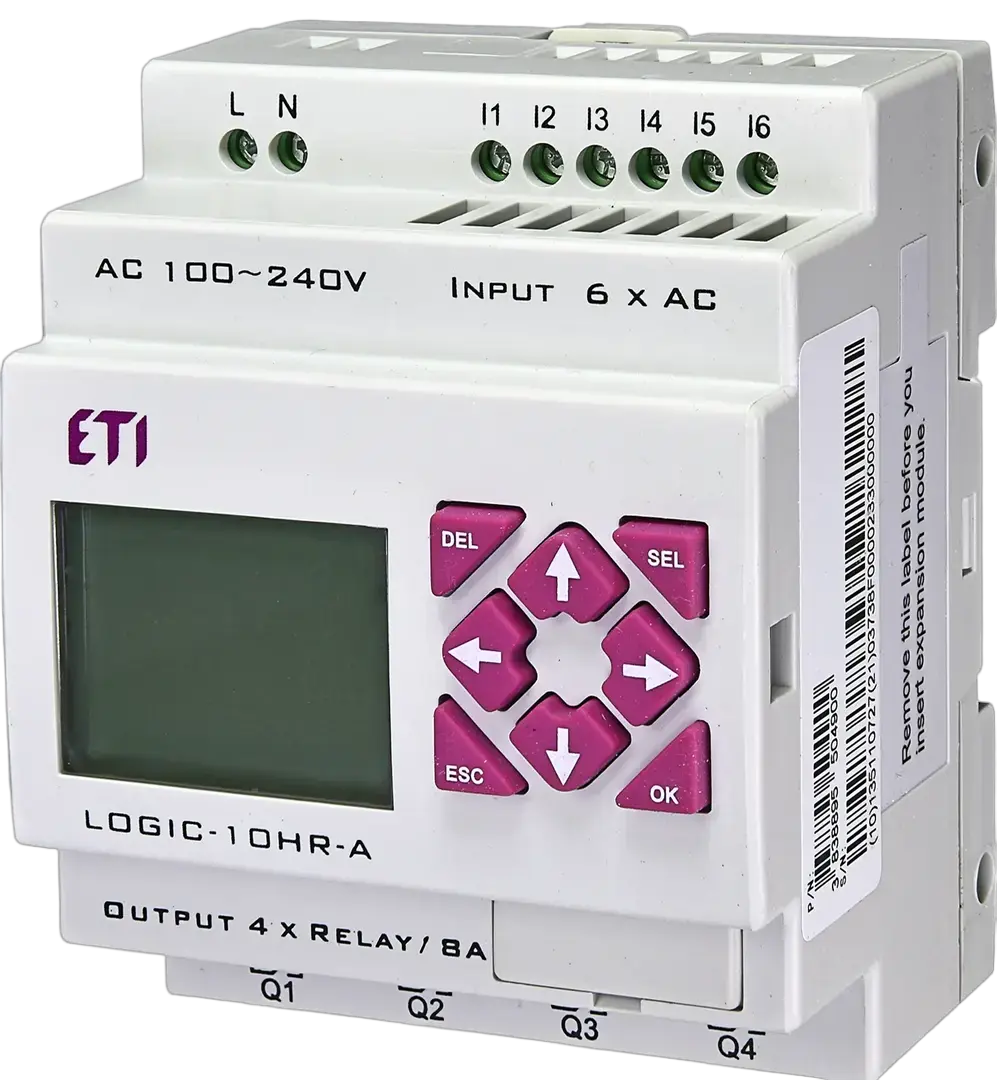

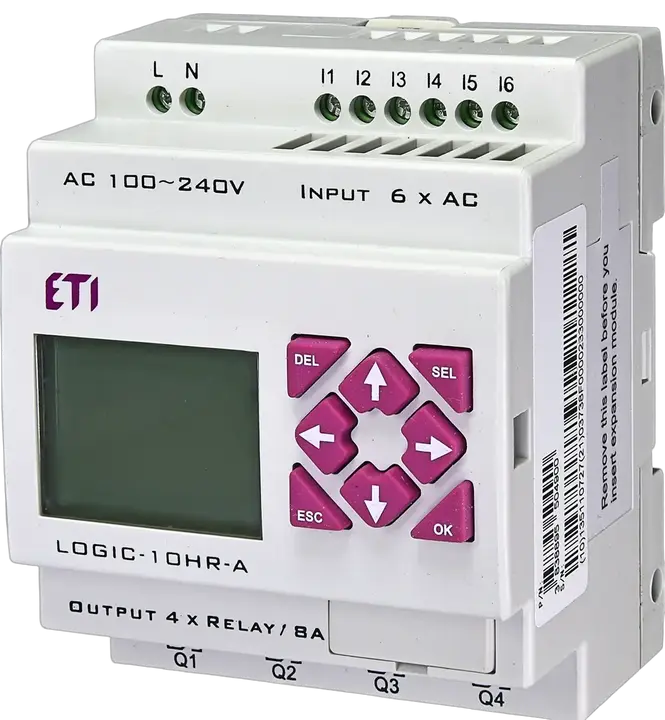

Controller PLC LOGIC-10HR-A 004780001
Specifications
- ETI Code:
- 004780001
- Description:
- LOGIC-10HR-A
- Class name:
- Controller PLC
- Function:
- PLC
Logistic Data
Product
- Net weight of the product
- 0.23 kg
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895504900
- Basic packaging weight
- 0.3 kg
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3838895504917
- Transport packaging weight
- 15 kg
- Pallet quantity
- 2650
ETIM Clasification
- Classification
- EC000236
- Class name
- PLC CPU-module
- Supply voltage AC 50 Hz
- 100…240V
- Supply voltage AC 60 Hz
- 100…240V
- Voltage type (supply voltage)
- AC
- Number of relay outputs
- 4
- Max. number of time switches
- 31
- Model
- Modular
- Number of digital inputs
- 6
- Number of digital outputs
- 4
- Supporting protocol for Modbus
- Yes
- With display
- Yes
- Rail mounting possible
- Yes
- Wall mounting/direct mounting
- Yes
- Width
- 72mm
- Height
- 90mm
- Depth
- 59,6mm
LOGIC-10HR-A
