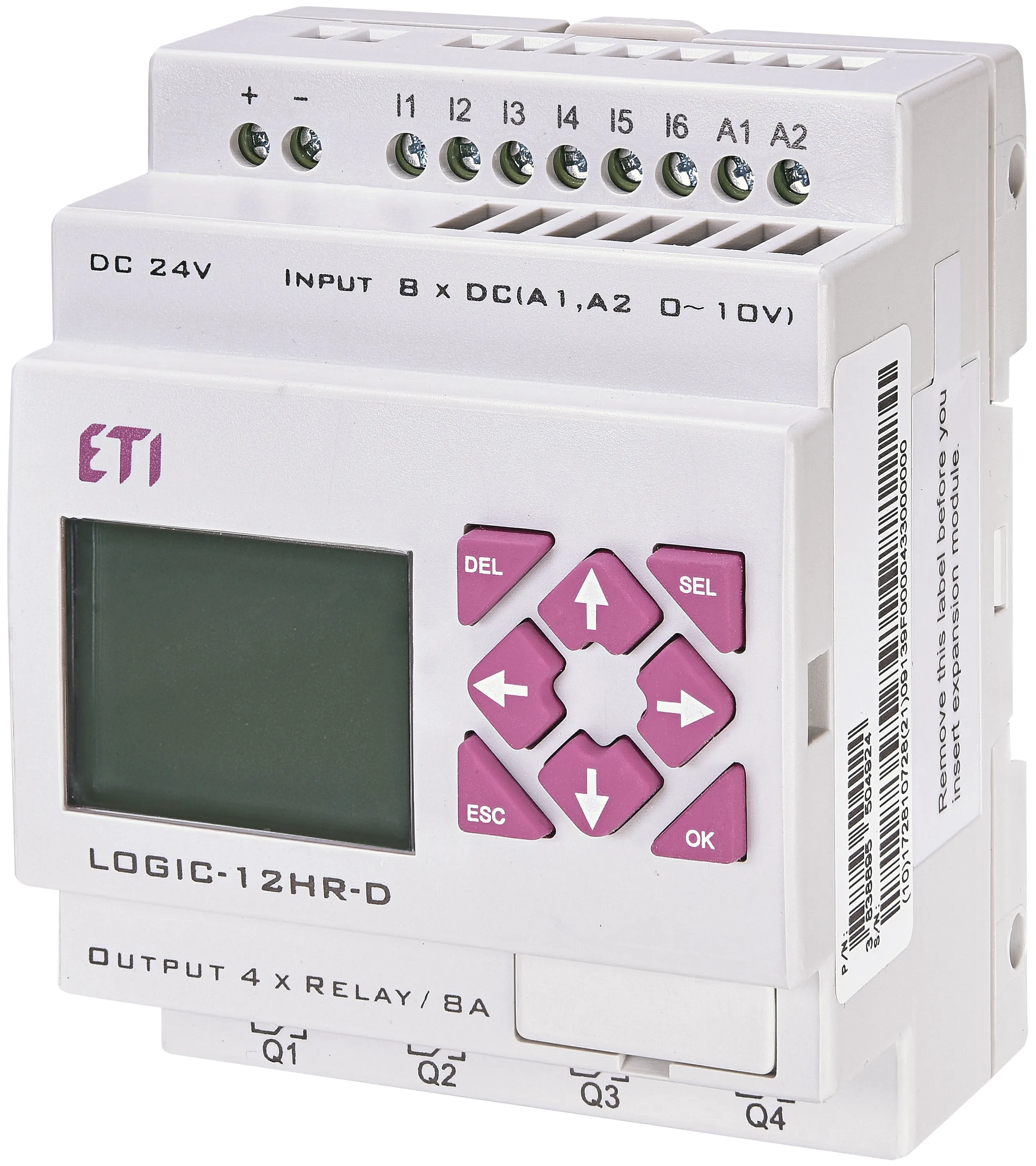

Controller PLC LOGIC-12HR-D 004780002

Specifications

ETI Code:
004780002
Description:
LOGIC-12HR-D
Class name:
Controller PLC
Function:
PLC

Product

Net weight of the product
0.23  kg
Customs tariff
85364900

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895504924
Basic packaging weight
0.3  kg

Transport packaging

Transport packaging quantity
50
EAN code for a transport packaging
3838895504931
Transport packaging weight
15  kg
Pallet quantity
2650
Classification
EC000236
Class name
PLC CPU-module
Supply voltage DC
24…24V
Voltage type (supply voltage)
DC
Number of relay outputs
4
Max. number of time switches
31
Model
Modular
Number of analogue inputs
2
Number of digital inputs
6
Supporting protocol for Modbus
Yes
With display
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Width
72mm
Height
90mm
Depth
59,6mm
ETIM Classification – Version 7.0

Software & drivers

004780002_SoftwareDrivers.zip Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
