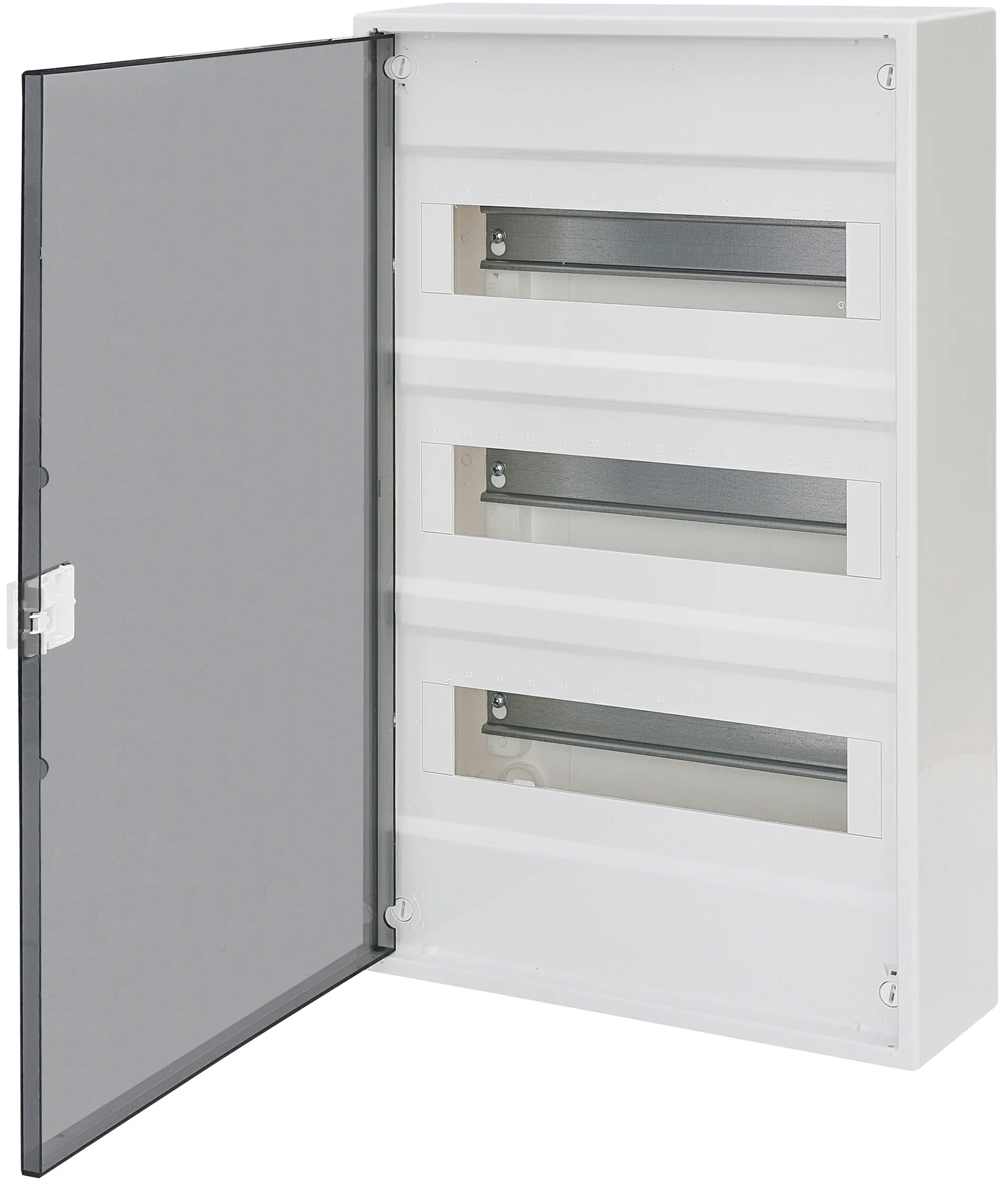

Distribution box ACT36PT 001100242
Specifications
- ETI Code:
- 001100242
- Description:
- ACT36PT
- Class name:
- Distribution box
- Protection Class:
- II
- Mounting type:
- Surface mounted
- Rated current (A):
- 63A
- IP rating:
- IP40
- Frame size (Number of rows):
- 3
- Number of modules (Total/per row):
- 36/12
- Door (material, color):
- Plastic, transparent
- Enclosure base (material, color):
- Plastic, white
- Number of PE/N terminals (connections):
- 15
- Glow wire test (°C):
- 650°C
Documents
Logistic Data
Product
- Net weight of the product
- 2 kg
- Customs tariff
- 85381000
- logis_net_width
- 310 mm
- logis_net_height
- 501 mm
- logis_net_depth
- 96 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895838722
- Basic packaging weight
- 2 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895838852
- Transport packaging weight
- 11 kg
- Pallet quantity
- 80
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 3
- Width in number of modular spacings
- 14
- Housing material
- Plastic
- Height
- 502mm
- Width
- 310mm
- Depth
- 96mm
- DIN-rail
- Yes
- With mounting plate
- No
- EMC-version
- Yes
- Colour
- White
- RAL-number
- 9003
- Degree of protection (IP)
- IP40
