002463430

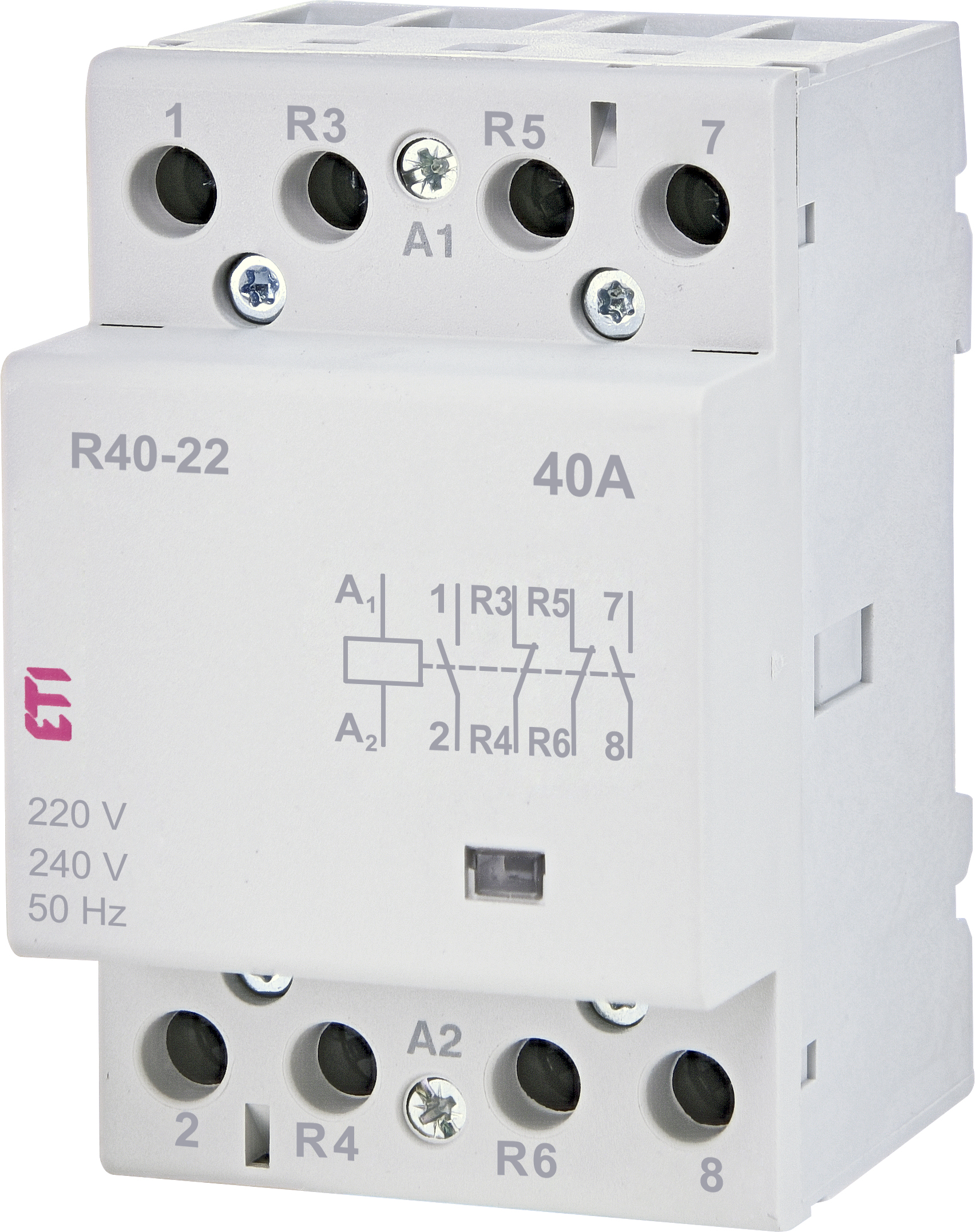

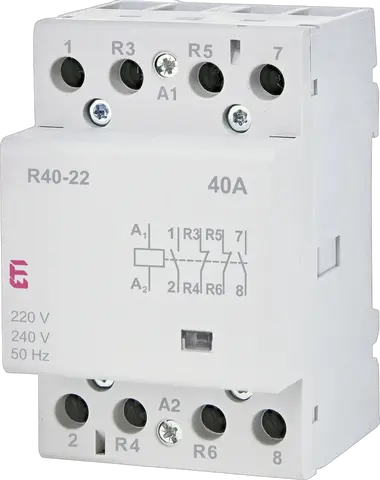

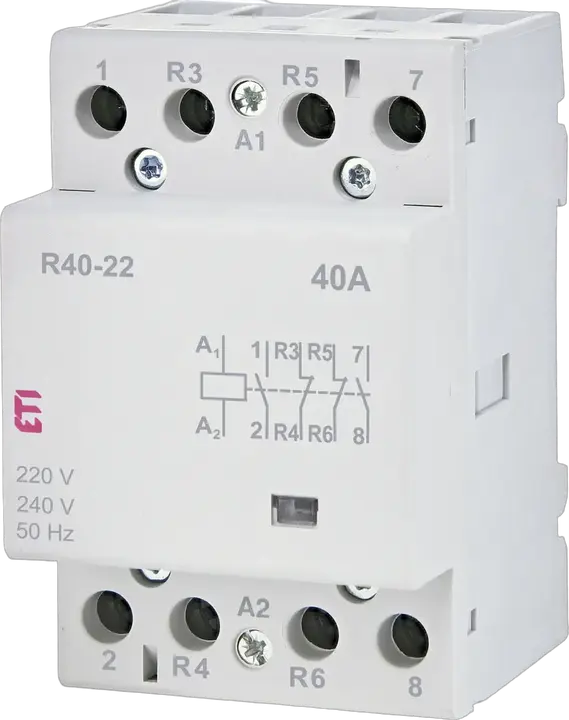

R 40-22 230V Modular contactor
- ETI Code:
- 002463430
- Depth:
- 60 mm
- Rated operation current Ie at AC1:
- 40 A
- IP rating:
- IP40
- Residual current type:
- AC
- Type description:
- AC
- Rated operational current Ie AC-1/AC-7:
- 40 A
- Rated operational voltage (AC):
- 440 V
- Rated control circuit voltage Uc (AC):
- 230 V
- Current type:
- AC
- Rated Frequency:
- 50/60 Hz
- No. of NO contacts:
- 2
- No. of NC contacts:
- 2
- Function:
- Modular contactor
- Type of Installation:
- DIN rail
- Catalogue Group:
- R
5 Documents
22 Logistics
Product
- EAN code for a single product
- 5904722903579
- Net weight of the product
- 0.36 kg
- Net width
- 54 mm
- Net height
- 88.8 mm
- Net depth
- 65 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 4 pcs
- EAN code for a basic packaging
- 3838895141235
- Basic packaging weight
- 1.44 kg
- Basic Packaging Dimensions Height
- 216 mm
- Basic Packaging Dimensions Width
- 90 mm
- Basic Packaging Dimensions Depth
- 73 mm
- Basic packaging volume
- 1.419 dm³
Transport Packaging
- Transport packaging quantity
- 40 pcs
- EAN code for a transport packaging
- 3838895162179
- Transport packaging weight
- 14.65 kg
- Transport Packaging Dimensions Height
- 190 mm
- Transport Packaging Dimensions Width
- 225 mm
- Transport Packaging Dimensions Depth
- 385 mm
- Transport packaging volume
- 16.459 dm³
- Pallet quantity
- 2,160 pcs
- Customs tariff
- 85364900
18 ETIM
- Additional equipment possible
- ✓
- Voltage type (excitation voltage)
- AC
- Built-in depth
- 60 mm
- Number of contacts as normally closed contact
- 2
- Max. load fluorescent lamp
- 2,975 VA
- Voltage type (operating voltage)
- AC/DC
- Degree of protection (IP)
- IP20
- Max. load fluorescent lamp (parallel compensated)
- 2,805 VA
- Utilization category according to EN IEC 60947-4-1
- AC-1
- Max. load fluorescent lamp (Duo circuit)
- 5,280 VA
- Number of contacts as normally open contact
- 2
- Rated operation current
- 40 A
- Max. incandescent lamp load
- 6,000 W
- Width in number of modular spacings
- 3
- Rated excitation voltage(Min)
- 230 V
- Rated operating voltage(Min)
- 24 V
- Rated operating voltage(Max)
- 440 V
- Rated excitation voltage(Max)
- 230 V
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
24 Tags
002463430Modular contactorR 40-22 230VETICONModular contactorsType-R4p, 3-modules40 A40 AInternationalContactors ETICONModular Contactors for installation into distribution boards and accesoriesModular Contactors for instalation into distribution boardsNo. of NC contacts: 2Rated operational voltage (AC): 440 VRated operational current Ie AC-1/AC-7: 40 ARated control circuit voltage Uc (AC): 230 VCurrent type: ACFunction: Modular contactorType of Installation: DIN railNo. of NO contacts: 2Catalogue Group: RRated Frequency: 50 Hz/60 HzModular contactor TOWAR Rated operational current Ie AC-1/AC-7: 40 A Rated control circuit voltage Uc (AC): 230 V Current type: AC No. of NO contacts: 2 No. of NC contacts: 2 Function: Modular contactor Type of Installation: DIN rail Catalogue Group: R
Accessories 3 All Accessories
Similar Products 137 All Products
002461210
R 20-20 230V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 20 A
- Rated operational voltage (AC)
- 250 V
- Rated control circuit voltage Uc (AC)
- 230 V
- Rated control circuit voltage Uc (DC)
002461211
R 20-20 24V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 20 A
- Rated operational voltage (AC)
- 250 V
- Rated control circuit voltage Uc (AC)
- 24 V
- Rated control circuit voltage Uc (DC)
002461220
R 20-11 230V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 20 A
- Rated operational voltage (AC)
- 250 V
- Rated control circuit voltage Uc (AC)
- 230 V
- Rated control circuit voltage Uc (DC)
002461221
R 20-11 24V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 20 A
- Rated operational voltage (AC)
- 250 V
- Rated control circuit voltage Uc (AC)
- 24 V
- Rated control circuit voltage Uc (DC)
002461230
R 20-02 230V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 20 A
- Rated operational voltage (AC)
- 250 V
- Rated control circuit voltage Uc (AC)
- 230 V
- Rated control circuit voltage Uc (DC)
002461231
R 20-02 24V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 20 A
- Rated operational voltage (AC)
- 250 V
- Rated control circuit voltage Uc (AC)
- 24 V
- Rated control circuit voltage Uc (DC)
002462310
R 25-40 230V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 25 A
- Rated operational voltage (AC)
- 440 V
- Rated control circuit voltage Uc (AC)
- 230 V
- Rated control circuit voltage Uc (DC)
002462311
R 25-40 24V
- Class name
- Modular contactor
- Rated operational current Ie AC-1/AC-7
- 25 A
- Rated operational voltage (AC)
- 440 V
- Rated control circuit voltage Uc (AC)
- 24 V
- Rated control circuit voltage Uc (DC)
002462320

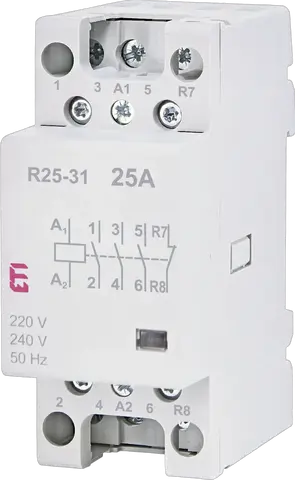

R 25-31 230V
