/ International / Fuse links for medium voltage VV/HH

VVA (without striker pin)

Items: 0
Fuse link VVA3 7,2kV/1A 004221102
004221102
VVA3 7,2kV/1A
Class name:
Fuse link
Rated minimum breaking current (A):
12A
Cold resistance (mΩ):
1170mΩ
Rated current (A):
1A
Type:
NEW VVA without striker
Fuse link VVA3 12kV/1A 004231102
004231102
VVA3 12kV/1A
Class name:
Fuse link
Rated minimum breaking current (A):
12A
Cold resistance (mΩ):
1970mΩ
Rated current (A):
1A
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/1A 004241102
004241102
VVA3 17,5kV/1A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
2800
Rated current (A):
1
Type:
NEW VVA without striker
Fuse link VVA3 24kV/1A 004251102
004251102
VVA3 24kV/1A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
3900
Rated current (A):
1
Type:
NEW VVA without striker
Fuse link VVA3 36kV/1A 004261102
004261102
VVA3 36kV/1A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
5800
Rated current (A):
1
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/2A 004221103
004221103
VVA3 7,2kV/2A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
580
Rated current (A):
2
Type:
NEW VVA without striker
Fuse link VVA3 12kV/2A 004231103
004231103
VVA3 12kV/2A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
980
Rated current (A):
2
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/2A 004241103
004241103
VVA3 17,5kV/2A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
1400
Rated current (A):
2
Type:
NEW VVA without striker
Fuse link VVA3 24kV/2A 004251103
004251103
VVA3 24kV/2A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
2040
Rated current (A):
2
Type:
NEW VVA without striker
Fuse link VVA3 36kV/2A 004261103
004261103
VVA3 36kV/2A
Class name:
Fuse link
Rated minimum breaking current (A):
12
Cold resistance (mΩ):
2900
Rated current (A):
2
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/4A 004221104
004221104
VVA3 7,2kV/4A
Class name:
Fuse link
Rated minimum breaking current (A):
20
Cold resistance (mΩ):
370
Rated current (A):
4
Type:
NEW VVA without striker
Fuse link VVA3 12kV/4A 004231104
004231104
VVA3 12kV/4A
Class name:
Fuse link
Rated minimum breaking current (A):
20
Cold resistance (mΩ):
650
Rated current (A):
4
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/4A 004241104
004241104
VVA3 17,5kV/4A
Class name:
Fuse link
Rated minimum breaking current (A):
20
Cold resistance (mΩ):
900
Rated current (A):
4
Type:
NEW VVA without striker
Fuse link VVA3 24kV/4A 004251104
004251104
VVA3 24kV/4A
Class name:
Fuse link
Rated minimum breaking current (A):
20
Cold resistance (mΩ):
1300
Rated current (A):
4
Type:
NEW VVA without striker
Fuse link VVA3 36kV/4A 004261104
004261104
VVA3 36kV/4A
Class name:
Fuse link
Rated minimum breaking current (A):
20
Cold resistance (mΩ):
1870
Rated current (A):
4
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/6A 004221105
004221105
VVA3 7,2kV/6A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
260
Rated current (A):
6
Type:
NEW VVA without striker
Fuse link VVA3 12kV/6A 004231105
004231105
VVA3 12kV/6A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
435
Rated current (A):
6
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/6A 004241105
004241105
VVA3 17,5kV/6A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
670
Rated current (A):
6
Type:
NEW VVA without striker
Fuse link VVA3 24kV/6A 004251105
004251105
VVA3 24kV/6A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
900
Rated current (A):
6
Type:
NEW VVA without striker
Fuse link VVA3 36kV/6A 004261105
004261105
VVA3 36kV/6A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
1300
Rated current (A):
6
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/6,3A 004221106
004221106
VVA3 7,2kV/6,3A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
260
Rated current (A):
6,3
Type:
NEW VVA without striker
Fuse link VVA3 12kV/6,3A 004231106
004231106
VVA3 12kV/6,3A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
435
Rated current (A):
6,3
Type:
NEW VVA without striker

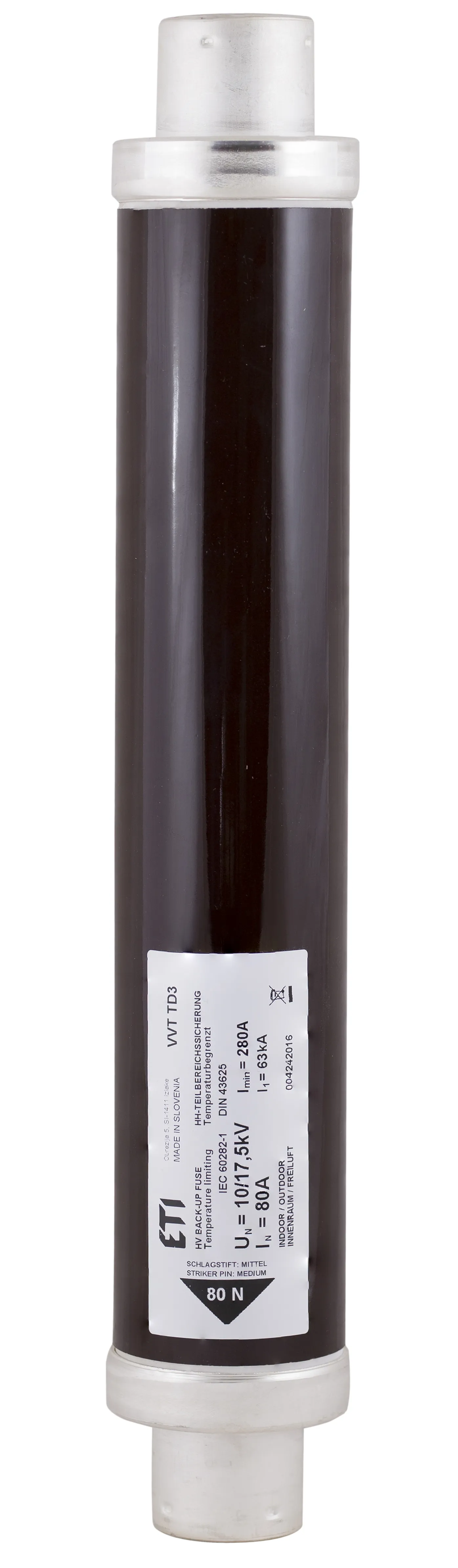

Fuse link VVA3 17,5kV/6,3A 004241106
004241106
VVA3 17,5kV/6,3A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
670
Rated current (A):
6,3
Type:
NEW VVA without striker

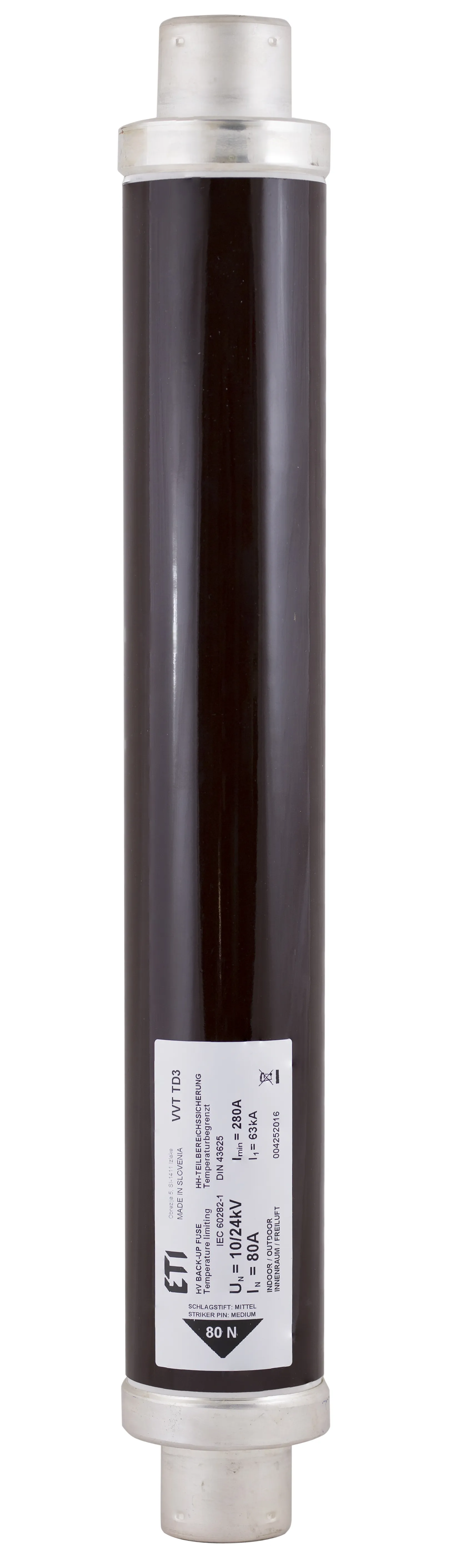

Fuse link VVA3 24kV/6,3A 004251106
004251106
VVA3 24kV/6,3A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
900
Rated current (A):
6,3
Type:
NEW VVA without striker
Fuse link VVA3 36kV/6,3A 004261106
004261106
VVA3 36kV/6,3A
Class name:
Fuse link
Rated minimum breaking current (A):
25
Cold resistance (mΩ):
1300
Rated current (A):
6,3
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/10A 004221107
004221107
VVA3 7,2kV/10A
Class name:
Fuse link
Rated minimum breaking current (A):
43
Cold resistance (mΩ):
75
Rated current (A):
10
Type:
NEW VVA without striker
Fuse link VVA3 12kV/10A 004231107
004231107
VVA3 12kV/10A
Class name:
Fuse link
Rated minimum breaking current (A):
43
Cold resistance (mΩ):
130
Rated current (A):
10
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/10A 004241107
004241107
VVA3 17,5kV/10A
Class name:
Fuse link
Rated minimum breaking current (A):
42
Cold resistance (mΩ):
160
Rated current (A):
10
Type:
NEW VVA without striker
Fuse link VVA3 24kV/10A 004251107
004251107
VVA3 24kV/10A
Class name:
Fuse link
Rated minimum breaking current (A):
42
Cold resistance (mΩ):
230
Rated current (A):
10
Type:
NEW VVA without striker

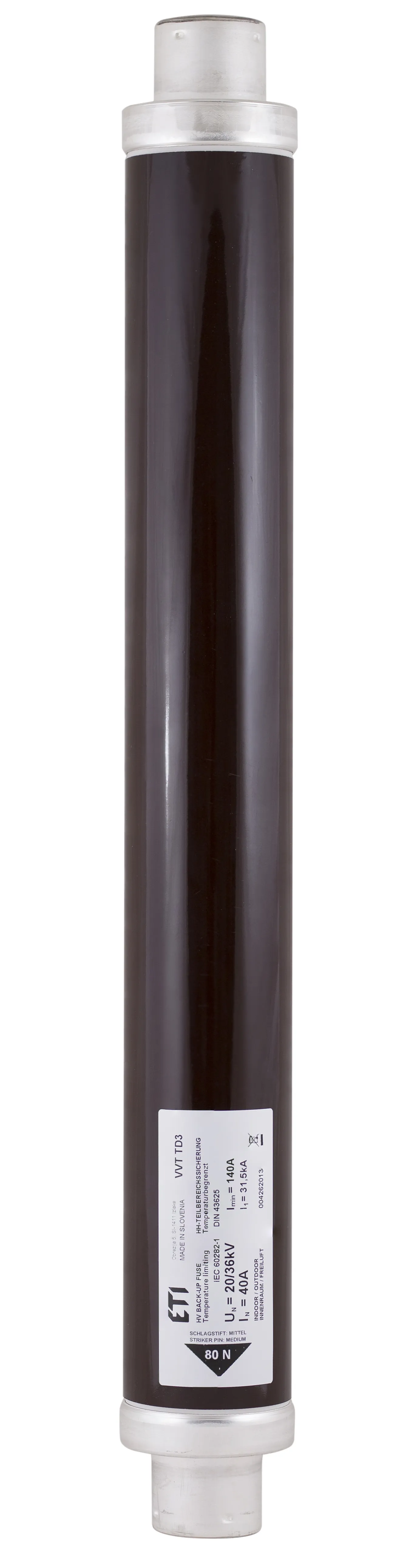

Fuse link VVA3 36kV/10A 004261107
004261107
VVA3 36kV/10A
Class name:
Fuse link
Rated minimum breaking current (A):
45
Cold resistance (mΩ):
320
Rated current (A):
10
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/16A 004221108
004221108
VVA3 7,2kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
44
Rated current (A):
16
Type:
NEW VVA without striker
Fuse link VVA3 12kV/16A 004231108
004231108
VVA3 12kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
70
Rated current (A):
16
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/16A 004241108
004241108
VVA3 17,5kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
95
Rated current (A):
16
Type:
NEW VVA without striker
Fuse link VVA3 24kV/16A 004251108
004251108
VVA3 24kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
125
Rated current (A):
16
Type:
NEW VVA without striker
Fuse link VVA3 36kV/16A 004261108
004261108
VVA3 36kV/16A
Class name:
Fuse link
Rated minimum breaking current (A):
56
Cold resistance (mΩ):
185
Rated current (A):
16
Type:
NEW VVA without striker
Fuse link VVA3 7,2kV/20A 004221109
004221109
VVA3 7,2kV/20A
Class name:
Fuse link
Rated minimum breaking current (A):
70
Cold resistance (mΩ):
27
Rated current (A):
20
Type:
NEW VVA without striker
Fuse link VVA3 12kV/20A 004231109
004231109
VVA3 12kV/20A
Class name:
Fuse link
Rated minimum breaking current (A):
70
Cold resistance (mΩ):
44
Rated current (A):
20
Type:
NEW VVA without striker
Fuse link VVA3 17,5kV/20A 004241109
004241109
VVA3 17,5kV/20A
Class name:
Fuse link
Rated minimum breaking current (A):
70
Cold resistance (mΩ):
58
Rated current (A):
20
Type:
NEW VVA without striker
Fuse link VVA3 24kV/20A 004251109
004251109
VVA3 24kV/20A
Class name:
Fuse link
Rated minimum breaking current (A):
70
Cold resistance (mΩ):
76
Rated current (A):
20
Type:
NEW VVA without striker
Fuse link VVA3 36kV/20A 004261109
004261109
VVA3 36kV/20A
Class name:
Fuse link
Rated minimum breaking current (A):
84
Cold resistance (mΩ):
110
Rated current (A):
20
Type:
NEW VVA without striker
>
>
