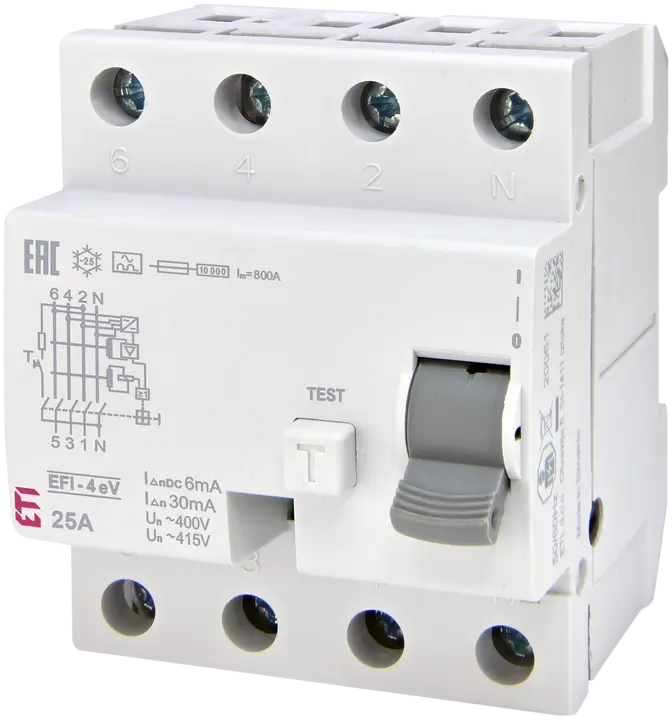

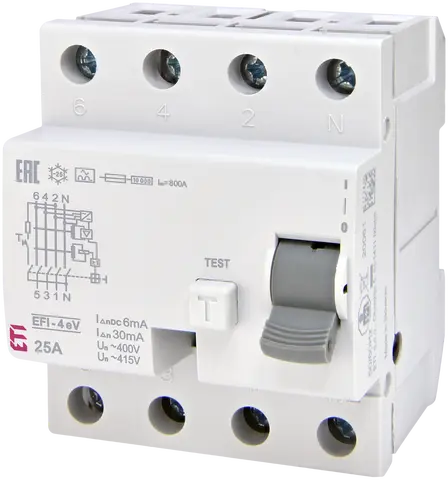

RCCB EFI-4 A eV 25/0.03 002062632

Specifications

ETI Code:
002062632
Description:
EFI-4 A eV 25/0.03
Class name:
RCCB
Rated current (A):
25
Rated residual operating current IΔn (A):
0.03
Type:
A
No. Of poles:
3+N
Rated conditional short-circuit current Inc (kA):
10
Tripping time:
Instantaneous
Rated voltage (V):
400
Rated Frequency (Hz):
50
Terminals (mm2):
1-25
Standards:
IEC/EN 61008, IEC 62955:2018

Documents

Product

EAN code for a single product
3838895877301
Net weight of the product
330 g
Customs tariff
85362010

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895877301
Basic packaging weight
0.36 kg
Basic packaging volume
0.5

Transport packaging

Transport packaging quantity
27
EAN code for a transport packaging
3838895877318
Transport packaging weight
10.015 kg
Transport packaging volume
17.4
Pallet quantity
1404
Pallet volume
469.8
Classification
EC000003
Class name
Residual current circuit breaker (RCCB)
Additional equipment possible
No
Ambient temperature during operating
-25…55°C
Built-in depth
68mm
Connectable conductor cross section multi-wired
1…25mm²
Connectable conductor cross section solid-core
1…25mm²
Degree of protection (IP)
IP20
Frequency
50/60 Hz
Leakage current type
Other
Mounting method
DIN rail
Nominal rated current
25A
Nominal rated voltage
400/415V
Number of poles
3
Rated fault current
30mA
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Selective protection
No
Short-circuit breaking capacity (Icw)
10kA
Short-time delayed tripping
No
Width in number of modular spacings
4
With interlocking device
No
ETIM Classification – Version 7.0

Images & Diagrams

002062632RCCB, EFI-4 A eV 25/0.03ASTIRCCBEFI -4EFI -4eV typeInstantaneousModular current and residual protective devicesResidual current circuit breakers RCCB and accessoriesResidual current circuit breakers RCCBEFI-4 A EV 25/0.Function RCCBRated current 25AType ARated residual current 30ARated voltage 400VNo. Of poles 3+NCatalogue Group EFI-4 eVRated Frequency 50HzStandards IEC EN 61008, IEC 62955:2018Terminals 1-25Rated residual operating current IΔn 0.03ATripping time InstantaneousRated conditional short-circuit current Inc 10kARCCB EFI 25A 0.03A A 3+N 10kA Instantaneous
