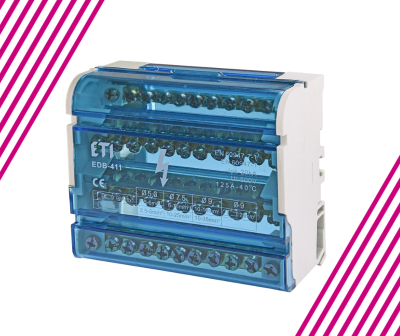

Din rail distribution blocks EDB

DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

• EDB-xyy Naming Convention:
  • The series follows a consistent naming convention, where:
  • x: Represents the number of poles (2 or 4)
  • yy: Indicates the number of terminals per pole, ranging from 07 to 15

• Technical Specifications:
  • Rated Current (In): 125A for all models
  • Short-Circuit Withstand Capability (Icc): 20kA
  • Compliance: EN 60947-1, EN 60947-7-1
  • Degree of Protection: IP20 with a closed cover
  • Wire Cross-Section:
    • Ø 5.3: 1.5 - 6 mm2 (with ferrule) and 2.5 - 6 mm2 (without ferrule)
    • Ø 7.5: 6 - 16 mm2 (with ferrule) and 10 - 25 mm2 (without ferrule)
    • Ø 9: 10 - 16 mm2 (with ferrule) and 10 - 35 mm2 (without ferrule)

• Applications:
  • Proper and Transparent Cable Connections: They are ideal for ensuring clear and secure connections of cables in low-voltage distribution boards.

• Construction and Materials:
  • EDB distribution blocks are meticulously engineered using high-quality materials to guarantee optimal performance and durability.
  • Brass screw terminal blocks: The double-deck terminal blocks are made of brass, known for its excellent conductivity and corrosion resistance.
  • Self-extinguishing housing: The housing is crafted from self-extinguishing material, prioritizing safety in the event of electrical faults.
  • Polycarbonate cover and separator: A transparent polycarbonate cover and separator provide both protection and visibility for easy inspection and maintenance.
