Din rail distribution blocks EDB

Introduction

DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

Image of EDB-207

EDB-207

Class name: Distribution block
Type of Installation: TH 35
Rated current: 125 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 2x7
Height: 50 mm
Width: 65 mm
Depth: 42 mm
Rated cross section: 1.5-16 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDB-211

EDB-211

Class name: Distribution block
Type of Installation: TH 35
Rated current: 125 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 2x11
Height: 50 mm
Width: 100 mm
Depth: 42 mm
Rated cross section: 1.5-16 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDB-215

EDB-215

Class name: Distribution block
Type of Installation: TH 35
Rated current: 125 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 2x15
Height: 50 mm
Width: 133 mm
Depth: 42 mm
Rated cross section: 1.5-16 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDB-413-160A

EDB-413-160A

Class name: Distribution block
Type of Installation: TH 35
Rated current: 160 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x13
Height: 73 mm
Width: 180 mm
Depth: 138 mm
Rated cross section: 6-35 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDB-4-200A-S

EDB-4-200A-S

Class name: Distribution block
Type of Installation: TH 35
Rated current: 200 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x11
Height: 122 mm
Width: 273 mm
Depth: 170 mm
Body material: PA
Working Temperature: -30-110 °C

Image of EDB-4-250A-S

EDB-4-250A-S

Class name: Distribution block
Type of Installation: TH 35
Rated current: 250 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x11
Height: 122 mm
Width: 273 mm
Depth: 170 mm
Body material: PA
Working Temperature: -30-110 °C

Image of EDB-4-400A-S

EDB-4-400A-S

Class name: Distribution block
Type of Installation: TH 35
Rated current: 400 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x10
Height: 122 mm
Width: 273 mm
Depth: 170 mm
Body material: PA
Working Temperature: -30-110 °C

Image of EDB-407

EDB-407

Class name: Distribution block
Type of Installation: TH 35
Rated current: 125 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x7
Height: 50 mm
Width: 65 mm
Depth: 88 mm
Rated cross section: 1.5-16 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDB-411

EDB-411

Class name: Distribution block
Type of Installation: TH 35
Rated current: 125 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x11
Height: 50 mm
Width: 100 mm
Depth: 88 mm
Rated cross section: 1.5-16 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDB-415

EDB-415

Class name: Distribution block
Type of Installation: TH 35
Rated current: 125 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
Rated Insulation Voltage: 500 V
Short circuit capacity: 20 kA
No. Of terminals: 4x15
Height: 50 mm
Width: 133 mm
Depth: 88 mm
Rated cross section: 1.5-16 mm²
Body material: PA
Clamp material: MO-57
Working Temperature: -30-85 °C

Image of EDBM-1

EDBM-1

Class name: Distribution block
Type of Installation: TH 35
Rated current: 160 A
Rated AC voltage: 1,500 V
Rated DC voltage: 1,500 V
Rated Insulation Voltage: 1,500 V
Short circuit capacity: 12 kA
Height: 44 mm
Width: 40 mm
Depth: 80 mm
Rated cross section: 2.5-50 mm²
Body material: PA6 GF25
Clamp material: MO-58

Image of EDBM-2

EDBM-2

Class name: Distribution block
Type of Installation: TH 35
Rated current: 160 A
Rated AC voltage: 1,500 V
Rated DC voltage: 1,500 V
Rated Insulation Voltage: 1,500 V
Short circuit capacity: 12 kA
Height: 44 mm
Width: 40 mm
Depth: 80 mm
Rated cross section: 2.5-50 mm²
Body material: PA6 GF25
Clamp material: MO-58

Image of EDBM-4

EDBM-4

Class name: Distribution block
Type of Installation: TH 35
Rated current: 192 A
Rated AC voltage: 1,500 V
Rated DC voltage: 1,500 V
Rated Insulation Voltage: 1,500 V
Short circuit capacity: 12 kA
Height: 44 mm
Width: 40 mm
Depth: 80 mm
Rated cross section: 4-70 mm²
Body material: PA6 GF25
Clamp material: MO-58

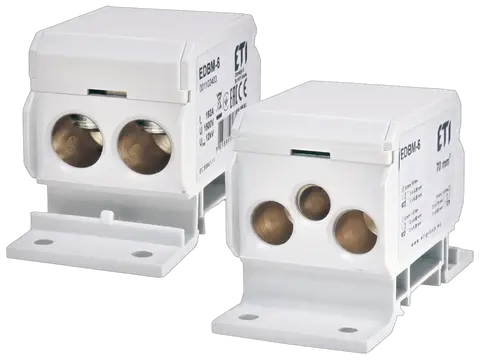

Image of EDBM-6

EDBM-6

Class name: Distribution block
Type of Installation: TH 35
Rated current: 192 A
Rated AC voltage: 1,500 V
Rated DC voltage: 1,500 V
Rated Insulation Voltage: 1,500 V
Short circuit capacity: 12 kA
Height: 44 mm
Width: 40 mm
Depth: 80 mm
Rated cross section: 4-70 mm²
Body material: PA6 GF25
Clamp material: MO-58

Image of EDBC-1x25-13x2,5

EDBC-1x25-13x2,5

Class name: Distribution block
Type of Installation: TH 35
Rated current: 63 A
Rated Insulation Voltage: 1,000 V
Short circuit capacity: 4 kA
Height: 85 mm
Width: 17.5 mm
Depth: 37.2 mm
Rated cross section: 1.5-25 mm²
Body material: PC/ABS
Clamp material: Cu-ETP-Zn
Working Temperature: -30-80 °C

Image of EDBC-1x25-13x2,5/N

EDBC-1x25-13x2,5/N

Class name: Distribution block
Type of Installation: TH 35
Rated current: 63 A
Rated Insulation Voltage: 1,000 V
Short circuit capacity: 4 kA
Height: 85 mm
Width: 17.5 mm
Depth: 37.2 mm
Rated cross section: 1.5-25 mm²
Body material: PC/ABS
Clamp material: Cu-ETP-Zn
Working Temperature: -30-80 °C

Image of EDBS-50B

EDBS-50B

Class name: Conductor connection clamps
Type of Installation: TH 35
Rated current: 150 A
Rated AC voltage: 690 V
Rated DC voltage: 690 V
Rated Insulation Voltage: 690 V
Short circuit capacity: 12 kA
Height: 40 mm
Width: 17.8 mm
Depth: 70 mm
Rated cross section: 16-70 mm²
Body material: PA6 GF25
Clamp material: Al6060+Sn

Image of EDBC-1x25-13x2,5/PE

EDBC-1x25-13x2,5/PE

Class name: Distribution block
Type of Installation: TH 35
Rated current: 63 A
Rated Insulation Voltage: 1,000 V
Short circuit capacity: 4 kA
Height: 85 mm
Width: 17.5 mm
Depth: 37.2 mm
Rated cross section: 1.5-25 mm²
Body material: PC/ABS
Clamp material: Cu-ETP-Zn
Working Temperature: -30-80 °C

Image of EDBM-1/N

EDBM-1/N

Class name: Distribution block
Type of Installation: TH 35
Rated current: 160 A
Rated AC voltage: 1,500 V
Rated DC voltage: 1,500 V
Rated Insulation Voltage: 1,500 V
Short circuit capacity: 12 kA
Height: 44 mm
Width: 40 mm
Depth: 80 mm
Rated cross section: 2.5-50 mm²
Body material: PA6 GF25
Clamp material: MO-58

Image of EDBC-1x25-13x2,5/R

EDBC-1x25-13x2,5/R

Class name: Distribution block
Type of Installation: TH 35
Rated current: 63 A
Rated Insulation Voltage: 1,000 V
Short circuit capacity: 4 kA
Height: 85 mm
Width: 17.5 mm
Depth: 37.2 mm
Rated cross section: 1.5-25 mm²
Body material: PC/ABS
Clamp material: Cu-ETP-Zn
Working Temperature: -30-80 °C
