001102305

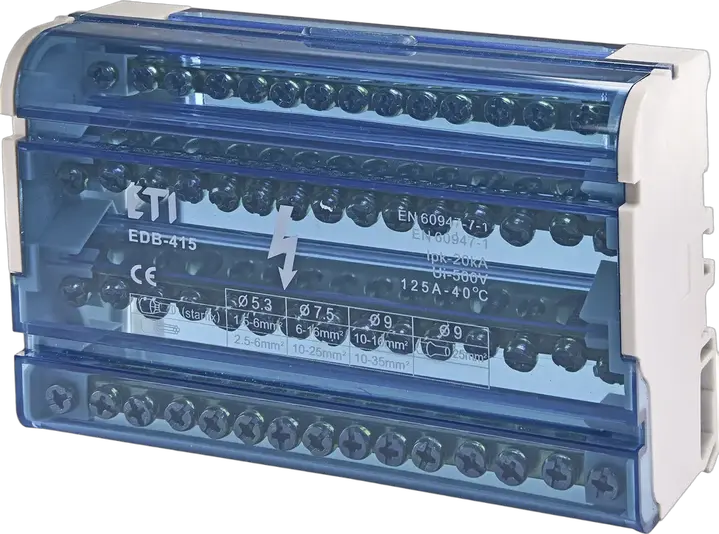

EDB-415 Distribution block
- ETI Code:
- 001102305
- Type accessories:
- EDB DIN rail distribution blocks
- Color:
- Grey
- Number of poles:
- 4
- Catalogue Group:
- EDB DIN rail distribution blocks
- Catalogue Subgroup:
- EDB DIN rail distribution blocks
- Type of Installation:
- TH 35
- Rated current:
- 125 A
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rated Insulation Voltage:
- 500 V
- Short circuit capacity:
- 20 kA
- No. Of terminals:
- 4x15
- Height:
- 50 mm
- Width:
- 133 mm
- Depth:
- 88 mm
- Rated cross section:
- 1.5-16 mm²
- Body material:
- PA
- Clamp material:
- MO-57
- Working Temperature:
- -30-85 °C
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.46 kg
- Net width
- 132.7 mm
- Net height
- 89.4 mm
- Net depth
- 50.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895633402
- Basic packaging weight
- 0.46 kg
- Basic packaging volume
- 0.585 dm³
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3838895633419
- Transport packaging weight
- 23 kg
- Transport packaging volume
- 29.25 dm³
- Pallet quantity
- 1,200 pcs
- Customs tariff
- 85369010
15 ETIM
- Width
- 133 mm
- Transparent
- Yes
- Material insulation body
- Thermoplastic
- Rated current In
- 125 A
- Mounting method
- Other
- Type of electrical connection 1
- Screw connection
- Number of poles
- 4
- Number of clamp positions per pole
- 15
- Closing plate required
- Yes
- Depth
- 88 mm
- Rated voltage
- 400 V
- Colour
- Grey
- Height
- 50 mm
- Connectable conductor cross section solid-core(Min)
- 1.5 mm²
- Connectable conductor cross section solid-core(Max)
- 16 mm²
ETIM Classification – Version 9.0
