Support and connections

Introduction

The ETIBUSBAR 60mm Busbar System is a standardized platform for electrical distribution.It utilizes busbar supports and various connection types to facilitate power distribution within electrical cabinets.

Image of BBS-60/1

BBS-60/1

Class name: Busbar support
Function: Busbar support
Number of poles: 1
To use with: Busbars 5 / 10 / 20 / 30 mm width

Image of BBS-60/3

BBS-60/3

Class name: Holder
Function: Busbar support
Number of poles: 3
To use with: Busbars 5 / 10 / 20 / 30 mm width

Image of BBS-60/4

BBS-60/4

Class name: Holder
Function: Busbar support
Number of poles: 4
To use with: Busbars 5 / 10 / 20 / 30 mm width

Image of H5-BBS

H5-BBS

Class name: Height adapter
Function: Insertion for busbar height compensation
Height: 5

Image of L-BBS-60/3

L-BBS-60/3

Class name: Lateral cover for busb.supp.
Function: Lateral cover
Number of poles: 3
To use with: Busbar holder

Image of L-BBS-60/4

L-BBS-60/4

Class name: Lateral cover for busb.supp.
Function: Lateral cover
Number of poles: 4
To use with: Busbar holder

Image of S-BBS-60/3

S-BBS-60/3

Class name: Lateral cover for busb.supp.
Function: Side cover
Number of poles: 3
To use with: Busbar holder (BBS-60/3-A)

Image of BBC-60/3

BBC-60/3

Class name: Busbar cover
Function: Busbar cover, covering range 27-50mm/piece
Number of poles: 3

Image of BBC-60/4

BBC-60/4

Class name: Busbar cover
Function: Busbar cover, covering range 27-50mm/piece
Number of poles: 4

Image of BBC-1/20

BBC-1/20

Class name: Busbar cover
Function: Busbar cover
Number of poles: 1
To use with: Single busbar 5 / 10 / 20 mm width
Height: 1

Image of BBC-1/30

BBC-1/30

Class name: Busbar cover
Function: Busbar cover
Number of poles: 1
To use with: Single busbar 5 / 10 / 20 / 30 mm width
Height: 1

Image of CM-60/250/3

CM-60/250/3

Class name: Connection adapter
Function: Connecting module
Rated current: 250
Number of poles: 3
Rated cross section: 1.5-70

Image of CM-60/250/4

CM-60/250/4

Class name: Connection adapter
Function: Connecting module
Rated current: 250
Number of poles: 4
Rated cross section: 1.5-70

Image of CM-60/250/3/120-5

CM-60/250/3/120-5

Class name: Connection adapter
Function: Connecting module
Rated current: 250
Number of poles: 3
Rated cross section: 16-120
To use with: Cu cable or flat Cu busbar 5mm

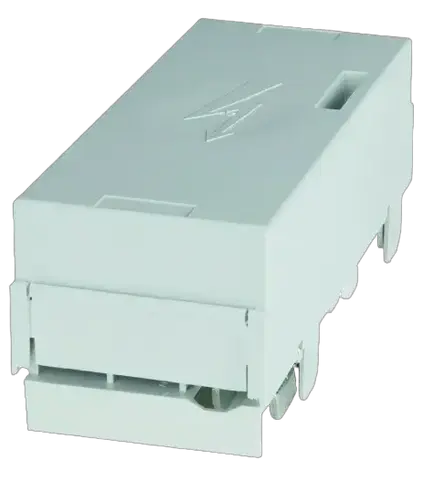

Image of CM-60/250/3/120-10

CM-60/250/3/120-10

Class name: Connection adapter
Function: Connecting module
Rated current: 250
Number of poles: 3
Rated cross section: 16-120
To use with: Cu cable or flat Cu busbar 5mm

Image of CM-60/630/3

CM-60/630/3

Class name: Connection adapter
Function: Connecting module
Rated current: 630
Number of poles: 3
Rated cross section: 70-300

Image of CM-60/630/F/3

CM-60/630/F/3

Class name: Connection adapter
Function: Connecting module
Rated current: 630
Number of poles: 3
To use with: Flat Cu busbar

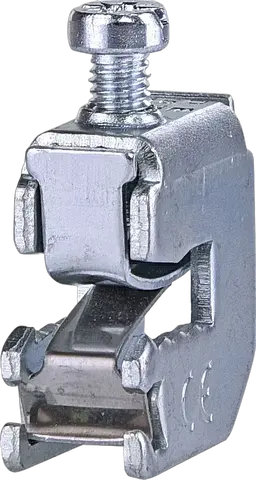

Image of CT-5/16

CT-5/16

Class name: Connection clamp
Function: Conductor terminal
To use with: Busbar thickness 5mm

Image of CT-5/35

CT-5/35

Class name: Connection clamp
Function: Conductor terminal
To use with: Busbars with 5 mm thickness

Image of CT-5/50

CT-5/50

Class name: Connection clamp
Function: Conductor terminal
To use with: Busbars with 5 mm thickness
