004774135

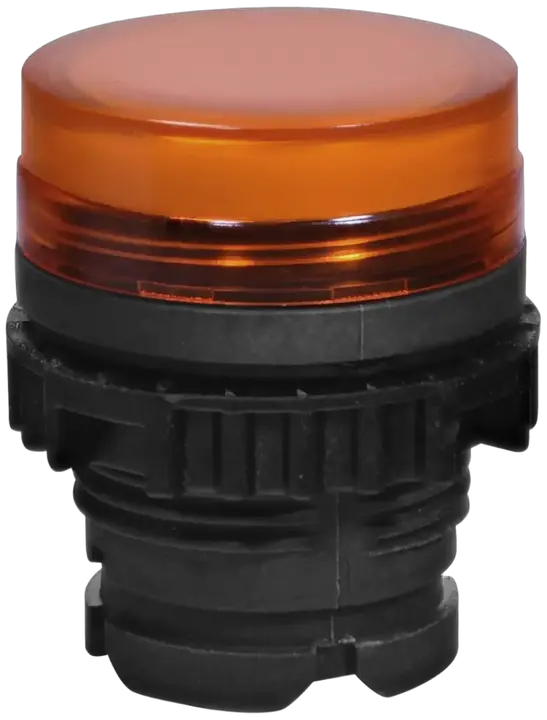

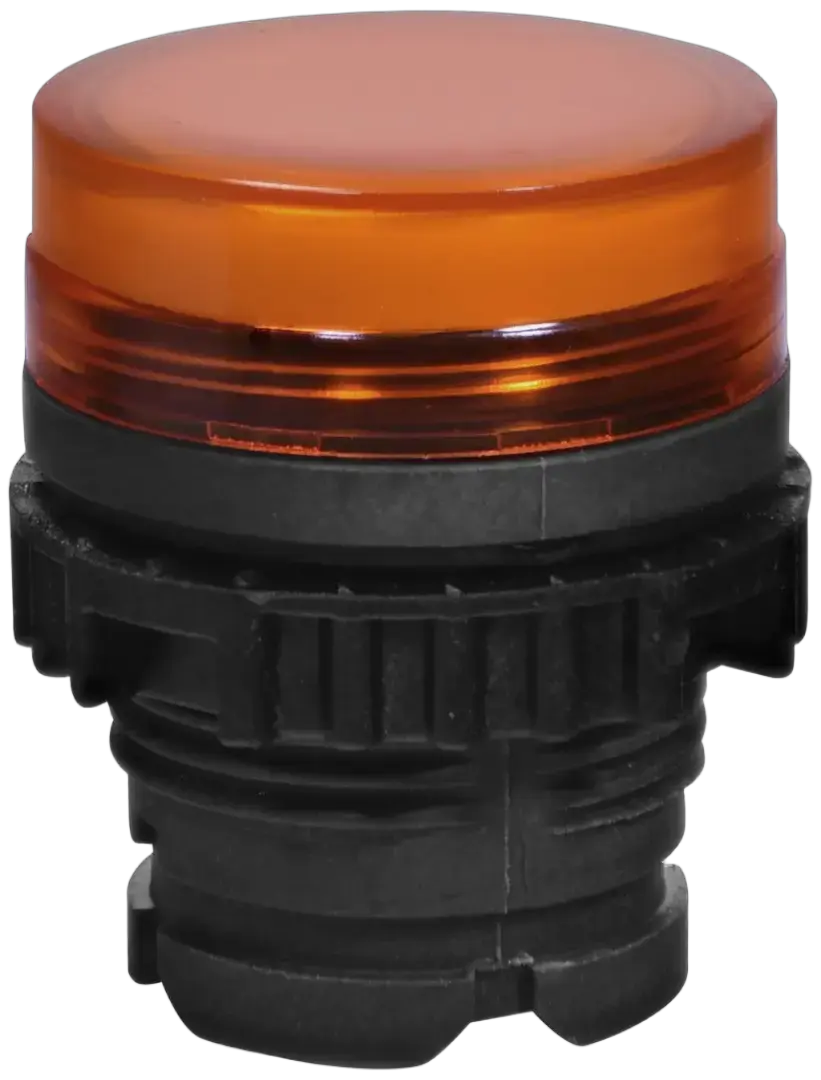

NSE-ILM-HD-O Signal lamp
- ETI Code:
- 004774135
- Function:
- Caps for LED module
- Power dissipation:
- 0.01 W
- Color:
- Orange
- Standards:
- IEC 60947-5-1
- Application:
- IEC 60947-5-1
- Approvals:
- CE
- Rated Insulation Voltage:
- 2 V
- Tightening torque:
- 0.8 Nm
- Type description:
- Difused
- Hole diameter:
- 22.5 mm
- Catalogue Group:
- NSE
- IP rating:
- IP20
- Working Temperature:
- -25-70 °C
- Life (burning hours):
- 100,000 h
- Rated cross section:
- 0.5-2.5 mm²
18 Logistics
Product
- Net weight of the product
- 0.012 kg
- Net width
- 30.5 mm
- Net height
- 30.5 mm
- Net depth
- 26.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7909712855522
- Basic packaging weight
- 0.016 kg
- Basic packaging volume
- 0.845 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838400152336
- Transport packaging weight
- 0.16 kg
- Transport Packaging Dimensions Height
- 32.5 mm
- Transport Packaging Dimensions Width
- 250 mm
- Transport Packaging Dimensions Depth
- 350 mm
- Transport packaging volume
- 2.844 dm³
- Pallet quantity
- 3,510 pcs
- Customs tariff
- 85318070
