004770368
Obsolete

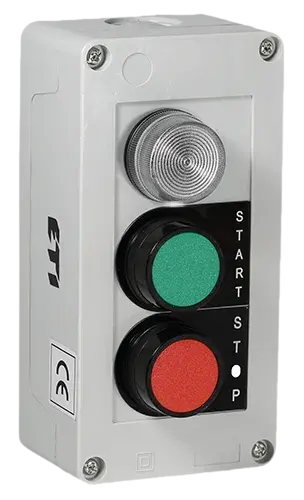

* JCZ4B2A1 Push-button/signal unit
- ETI Code:
- 004770368
- Catalogue Group:
- Push button stations and enclosures H-line
- IP rating:
- IP65
- DC rated control supply voltage Uc:
- 12-220 V
- Function:
- Push button stations
1 Documents
12 Logistics
Product
- Net weight of the product
- 0.27 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895383543
- Basic packaging weight
- 0.247 kg
- Basic packaging volume
- 1.05 dm³
Transport Packaging
- Transport packaging quantity
- 22 pcs
- EAN code for a transport packaging
- 3838895383550
- Transport packaging weight
- 5.934 kg
- Transport packaging volume
- 27 dm³
- Pallet quantity
- 1,474 pcs
- Customs tariff
- 85389099
11 ETIM
- Number of push buttons
- 2
- Number of contacts as normally closed contact
- 1
- Number of command positions
- 3
- Degree of protection (IP)
- IP65
- Colour housing cover
- Grey
- Number of contacts as normally open contact
- 1
- Housing material
- Plastic
- Rated control supply voltage DC(Min)
- 12 V
- Rated control supply voltage AC 50 Hz(Min)
- 12 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
- Rated control supply voltage DC(Max)
- 220 V
ETIM Classification – Version 9.0
