002470010

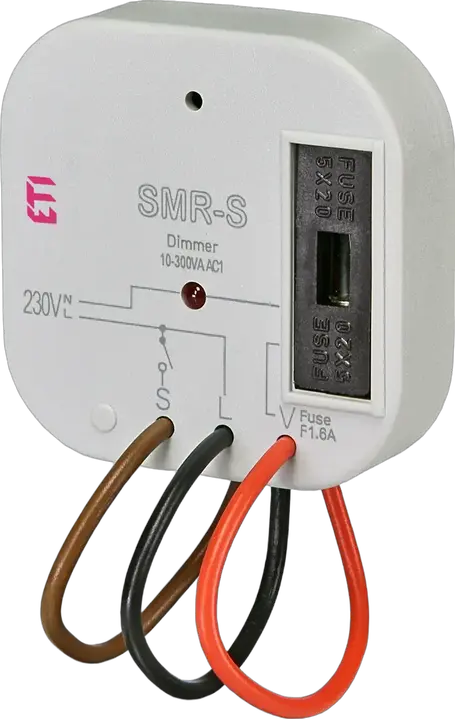

SMR-S Dimming relay
- ETI Code:
- 002470010
- Rated Frequency:
- 50/60 Hz
- Application:
- Sterowanie i regulacja natężenia oświetlenia.
- Type of Installation:
- Flush mounting
- IP rating:
- IP40, IP20
- Clamping cross-section:
- 0.5-1 mm²
- Type of Control:
- Elektroniczna regulacja oświetlenia.
- Voltage type:
- AC
- Function:
- Dimmer
- Maximum load capacity at AC1:
- 160 VA
- Supply Voltage:
- 230 V
6 Documents
15 Logistics
Product
- Net weight of the product
- 0.055 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 8594030338353
- Basic packaging weight
- 0.06 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 39 mm
- Basic packaging volume
- 0.326 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895231271
- Transport packaging weight
- 0.765 kg
- Transport packaging volume
- 5.26 dm³
- Pallet quantity
- 42,910 pcs
- Customs tariff
- 85364900
18 ETIM
- Type of fastening
- Other
- Device depth
- 13.3 mm
- Assembly arrangement
- Basic element
- Mounting method
- Built-in installation
- Device height
- 49 mm
- Material quality
- Thermoplastic
- Type of load
- Universal
- Halogen free
- ✓
- Serial dimmer
- ✓
- Colour
- Grey
- Device width
- 49 mm
- Applicable with button
- ✓
- Suitable for degree of protection (IP)
- IP30
- Material
- Plastic
- Frequency(Min)
- 50 Hz
- Control voltage(Min)
- 230 V
- Frequency(Max)
- 50
- Control voltage(Max)
- 230 V
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
26 Tags
002470010Dimming relaySMR-SEVE/ETIRELControl equipmentRelaysRelaysDimmerDimmerInternationalAutomation, signaling and control devicesTimers and digital time relays ETIRELNo. of NC contacts: 0Voltage type: ACClamping cross-section: 0.5 mm²-1 mm²No. of CO contacts: 0Application: Sterowanie i regulacja natężenia oświetlenia.Type of Control: Elektroniczna regulacja oświetlenia.Function: DimmerIP rating: IP20, IP40Type of Installation: Flush mountingMaximum load capacity at AC1: 160 VANo. of NO contacts: 0Supply Voltage: 230 V-230 VRated Frequency: 50 Hz/60 HzDimming relay TOWAR Function: Dimmer Application: Sterowanie i regulacja natężenia oświetlenia. Type of Control: Elektroniczna regulacja oświetlenia. Supply Voltage: 230 V-230 V Voltage type: AC Rated Frequency: 50 Hz/60 Hz Maximum load capacity at AC1: 160 VA Clamping cross-section: 0.5 mm²-1 mm² Type of Installation: Flush mounting IP rating: IP20, IP40 No. of NO contacts: 0 No. of CO contacts: 0 No. of NC contacts: 0
