002473000

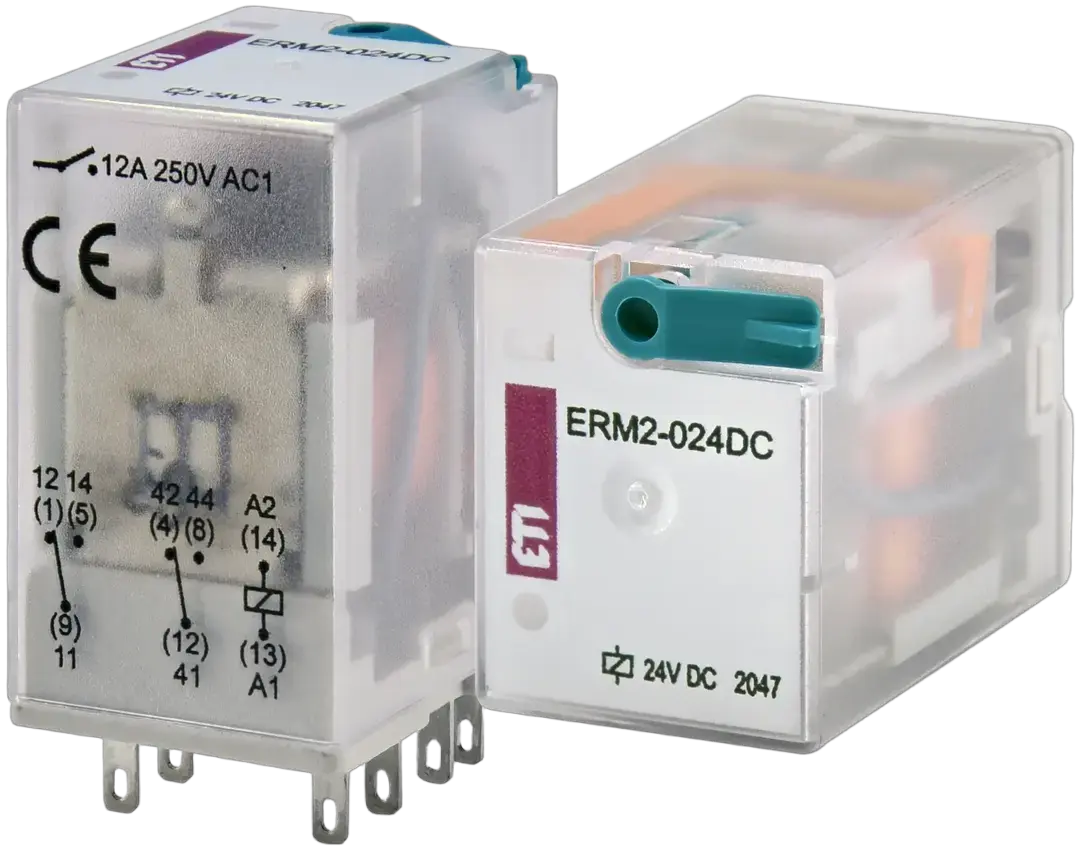

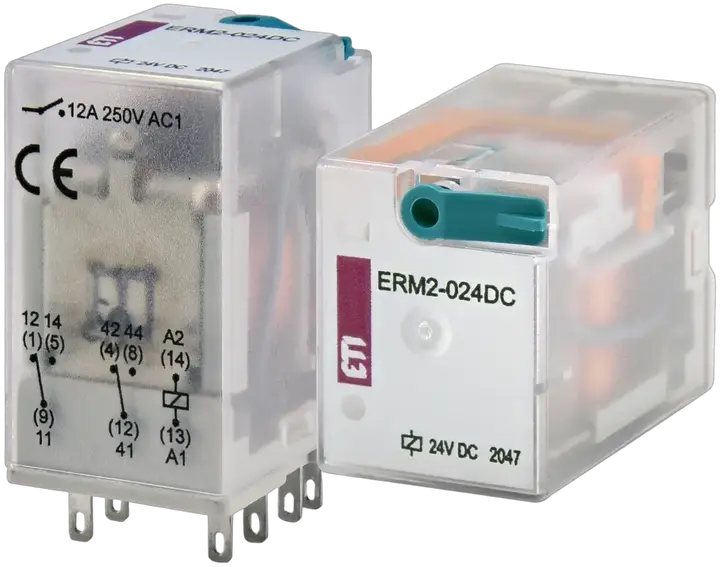

ERM2-024DC Relay
- ETI Code:
- 002473000
- Height:
- 27.5 mm
- Width:
- 21.2 mm
- IP rating:
- IP40
- DC rated control supply voltage Uc:
- 24 V
- Maximum load capacity at AC1:
- 3,000 VA
- Rated current:
- 12 A
- Voltage type:
- DC
- Uc rated coil voltage:
- 24 V
- No. of CO contacts:
- 2
- Switching voltage:
- 250 V
- Function:
- Industrial plugin electromagnetic relays
- Catalogue Group:
- ER Industrial plugin Electromagnetic relays
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838400013644
- Net weight of the product
- 0.033 kg
- Net width
- 21.2 mm
- Net height
- 27.5 mm
- Net depth
- 42.25 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895680239
- Basic packaging weight
- 0.33 kg
- Basic Packaging Dimensions Height
- 60 mm
- Basic Packaging Dimensions Width
- 51 mm
- Basic Packaging Dimensions Depth
- 115 mm
- Basic packaging volume
- 0.352 dm³
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895680246
- Transport packaging weight
- 3.4 kg
- Transport Packaging Dimensions Height
- 170 mm
- Transport Packaging Dimensions Width
- 130 mm
- Transport Packaging Dimensions Depth
- 203 mm
- Transport packaging volume
- 4.486 dm³
- Pallet quantity
- 14,700 pcs
- Customs tariff
- 85364900
12 ETIM
- Width
- 21.2 mm
- Nominal current
- 12 A
- Voltage type (operating voltage)
- DC
- Degree of protection (IP)
- IP40
- Voltage type for actuating
- DC
- Depth
- 35.6 mm
- Type of electric connection
- Plug-in connection
- Number of contacts as change-over contact
- 2
- Height
- 27.5 mm
- Drive, switching attitude
- Mono stable
- Rated control supply voltage DC(Min)
- 24 V
- Rated control supply voltage DC(Max)
- 24 V
ETIM Classification – Version 9.0
