002473036

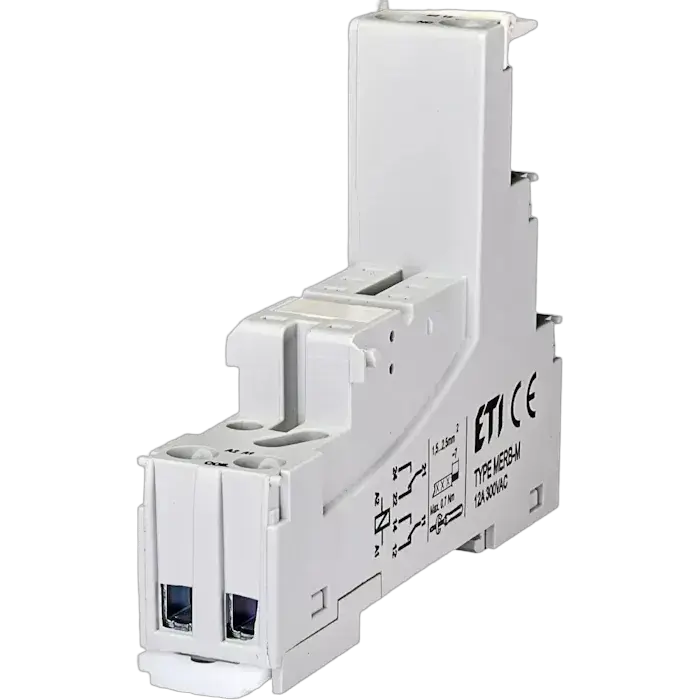

MERB-M Base
- ETI Code:
- 002473036
- To use with:
- MER2
- Function accessories:
- Plug-in Sockets (Base)
- Category:
- Sockets and accessories for MER2
- Function:
- Plug-in Sockets (Base)
- Catalogue Group:
- MER Miniature electromagnetic relays
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838400013842
- Net weight of the product
- 0.044 kg
- Net width
- 15.8 mm
- Net height
- 81.4 mm
- Net depth
- 61 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895703150
- Basic packaging weight
- 0.453 kg
- Basic Packaging Dimensions Height
- 89 mm
- Basic Packaging Dimensions Width
- 73 mm
- Basic Packaging Dimensions Depth
- 166 mm
- Basic packaging volume
- 1.078 dm³
Transport Packaging
- Transport packaging quantity
- 80 pcs
- EAN code for a transport packaging
- 3838895703167
- Transport packaging weight
- 4.63 kg
- Transport Packaging Dimensions Height
- 205 mm
- Transport Packaging Dimensions Width
- 166 mm
- Transport Packaging Dimensions Depth
- 405 mm
- Transport packaging volume
- 13.782 dm³
- Pallet quantity
- 2,880 pcs
- Customs tariff
- 85364900
6 ETIM
- Width
- 16 mm
- Mounting method
- DIN rail (top hat rail) 35 mm
- Number of pins
- 8
- Depth
- 61 mm
- Type of electric connection
- Screw connection
- Height
- 81 mm
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
18 Tags
002473036BaseMERB-MEVE/ETIRELElectromechanical RelaysMiniature Electromagnetic RelaysPlug-in SocketsPlug-in SocketsPlug-in SocketsInternationalAutomation, signaling and control devicesIndustrial, miniature and slim relays ETIRELSockets and accessories for MER2Function: Plug-in Sockets (Base)Function accessories: Plug-in Sockets (Base)Category: Sockets and accessories for MER2Catalogue Group: MER Miniature electromagnetic relaysBase TOWAR Function accessories: Plug-in Sockets (Base) Category: Sockets and accessories for MER2 Function: Plug-in Sockets (Base) Catalogue Group: MER Miniature electromagnetic relays
Accessories 11 All Accessories
Similar Products 7 All Products
002473026

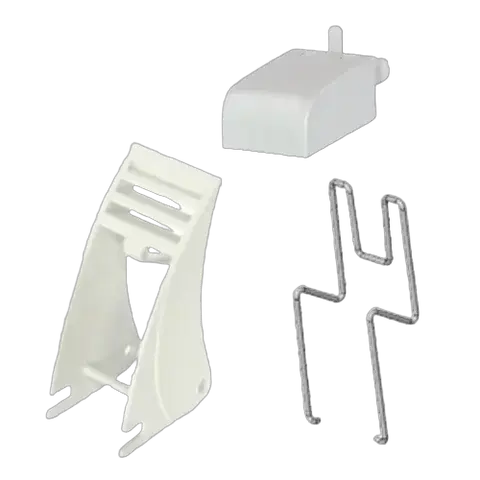

ER-CLIP-SP
