002421415

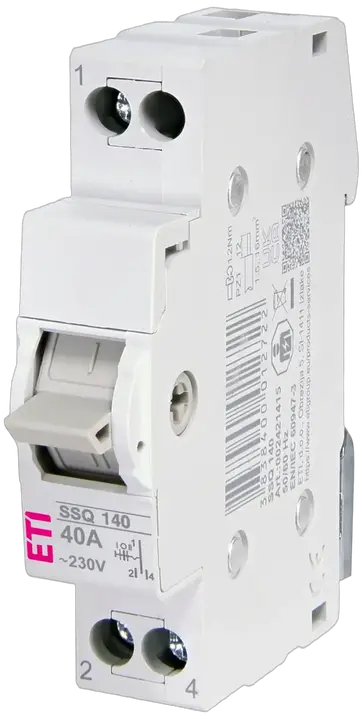

SSQ 140 Center-off change-over switch
- ETI Code:
- 002421415
- Rated AC voltage:
- 230 V
- Standards:
- 60947-3
- Utilization category:
- AC-22B
- Max. input cross-section:
- 16 mm²
- Function:
- SSQ Modular Changeover Switches I-0-II (Mains/Generator)
- Application:
- Switching power sources in the event of a failure
- Indicator:
- Visual contact position indication
- Voltage type:
- AC
- Supply voltage:
- 230-400 V
- Rated frequency:
- 50/60 Hz
- Rated current:
- 40 A
- Rated cross section:
- 1.5-16 mm²
- IP rating:
- IP20
- Type of installation:
- DIN rail 35 mm
- Number of poles:
- 1
21 Logistics
Product
- Net weight of the product
- 0.078 kg
- Net width
- 18 mm
- Net height
- 83.5 mm
- Net depth
- 72.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895930549
- Basic packaging weight
- 0.088 kg
- Basic Packaging Dimensions Height
- 76 mm
- Basic Packaging Dimensions Width
- 20 mm
- Basic Packaging Dimensions Depth
- 84 mm
- Basic packaging volume
- 0.128 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895930556
- Transport packaging weight
- 1.056 kg
- Transport Packaging Dimensions Height
- 76 mm
- Transport Packaging Dimensions Width
- 84 mm
- Transport Packaging Dimensions Depth
- 220 mm
- Transport packaging volume
- 1.404 dm³
- Pallet quantity
- 6,000 pcs
- Customs tariff
- 85365080
14 ETIM
- Built-in depth
- 70 mm
- Voltage type
- AC
- Colour calotte
- Other
- Lamp socket
- Other
- Lamp type
- Other
- Degree of protection (IP)
- IP20
- Number of poles
- 1
- Type of switch
- Group switch
- Rated voltage
- 230 V
- Rated current
- 40 A
- Switching function
- Group switch
- Min. rated voltage
- 10 V
- Number of contacts as change-over contact
- 1
- Width in number of modular spacings
- 1
ETIM Classification – Version 9.0
