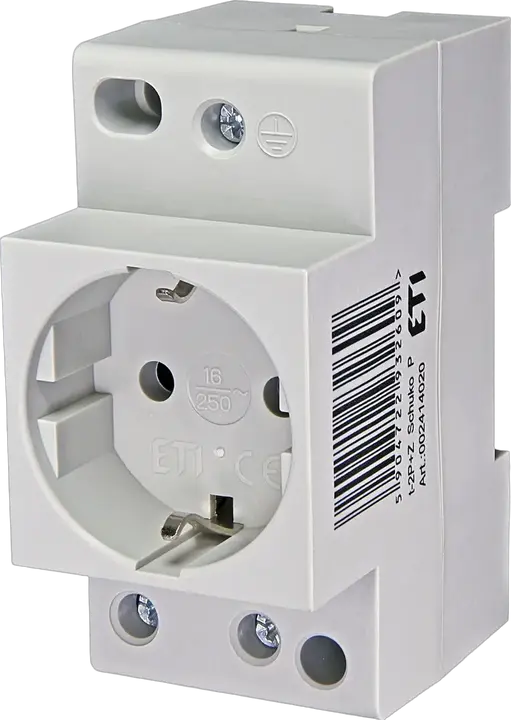

002414020
t-2P+Z Schuko P Socket
- ETI Code:
- 002414020
- Rated DC voltage:
- 24 V
- Color:
- Grey
- Rated Frequency:
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Application:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
- Max input cross-section:
- 6 mm²
- Catalogue Group:
- DIN sockets
- Catalogue Subgroup:
- Schuko
- Function:
- DIN socket
- Rated current:
- 16 A
5 Documents
22 Logistics
Product
- EAN code for a single product
- 5904722932609
- Net weight of the product
- 80 g
- Net width
- 45 mm
- Net height
- 94 mm
- Net depth
- 64.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 5904722995956
- Basic packaging weight
- 0.6 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 95 mm
- Basic Packaging Dimensions Depth
- 230 mm
- Basic packaging volume
- 1.639 dm³
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 5904722995963
- Transport packaging weight
- 12.2 kg
- Transport Packaging Dimensions Height
- 310 mm
- Transport Packaging Dimensions Width
- 250 mm
- Transport Packaging Dimensions Depth
- 510 mm
- Transport packaging volume
- 50 dm³
- Pallet quantity
- 1,600 pcs
- Customs tariff
- 85366990
15 ETIM
- Type of fastening
- Snap mounting (engagement)
- Device depth
- 65 mm
- Nominal current
- 16 A
- Model
- Socket outlet CEE 7/3 (type F)
- Mounting method
- Other
- Device height
- 90 mm
- Nominal voltage
- 250 V
- Halogen free
- Yes
- Number of units
- 1
- Colour
- Grey
- Device width
- 45 mm
- Suitable for degree of protection (IP)
- IP20
- Material
- Plastic
- Frequency(Min)
- 50 Hz
- Frequency(Max)
- 60
ETIM Classification – Version 9.0
