004641401

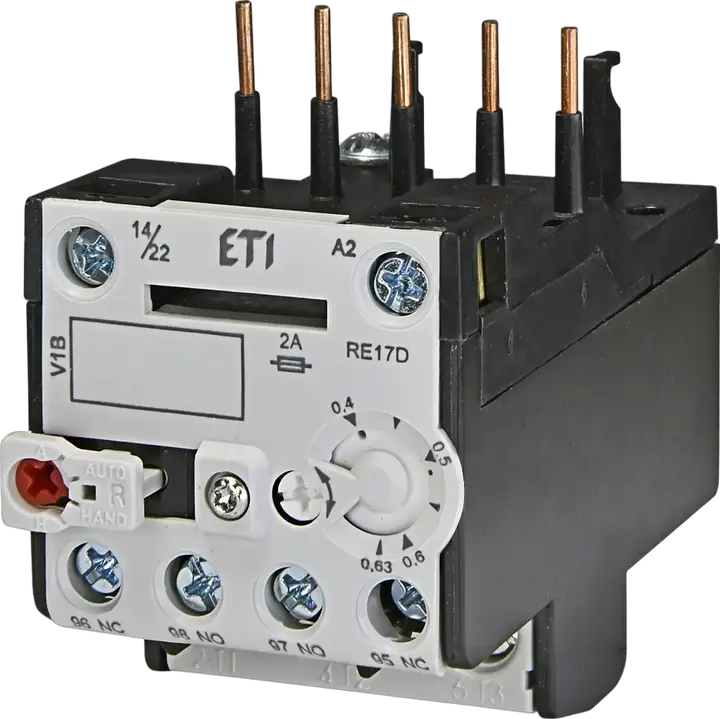

RE17D-0,63 Thermal overload relay
- ETI Code:
- 004641401
- To use with:
- miniature and auxiliary contator CE
- Current setting range:
- 0.4/0.63 A
- No. of aux NC contacts:
- 1
- Function:
- Overload relay
- Type of Installation:
- Contactor mounting
- Catalogue Group:
- Accessories CE, CAE, CE17
14 Logistics
Product
- Net weight of the product
- 0.15 kg
- Net width
- 45.1 mm
- Net height
- 70.4 mm
- Net depth
- 82.9 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355110034
- Transport packaging weight
- 0.17 kg
- Transport Packaging Dimensions Height
- 75 mm
- Transport Packaging Dimensions Width
- 90 mm
- Transport Packaging Dimensions Depth
- 50 mm
- Transport packaging volume
- 0.338 dm³
- Pallet quantity
- 5,333 pcs
- Customs tariff
- 85364900
7 ETIM
- Release class
- CLASS 10
- Mounting method
- Direct attachment
- Type of electrical connection of main circuit
- Flat plug-in connection
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Adjustable current range(Min)
- 0.4 A
- Adjustable current range(Max)
- 0.63 A
ETIM Classification – Version 9.0
