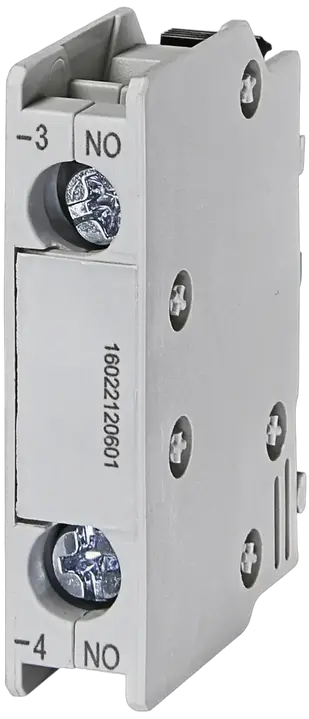

BCXMFE 10 (1NO) Aux.contacts
- ETI Code:
- 004641510
- To use with:
- CEM9-CEM105
- Type of Installation:
- Contactor mounting
- No. of NO contacts:
- 1
- Function accessories:
- Auxiliary contact blocks-front mounted
- Catalogue Group:
- Accessories CEM/CEAM
- Function:
- Accessories
5 Documents
21 Logistics
Product
- Net weight of the product
- 3 g
- Net width
- 10.5 mm
- Net height
- 43.2 mm
- Net depth
- 33 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7890355110409
- Basic packaging weight
- 0.015 kg
- Basic Packaging Dimensions Height
- 35 mm
- Basic Packaging Dimensions Width
- 45 mm
- Basic Packaging Dimensions Depth
- 10 mm
- Basic packaging volume
- 0.016 dm³
Transport Packaging
- Transport packaging quantity
- 25 pcs
- EAN code for a transport packaging
- 17890355110406
- Transport packaging weight
- 0.375 kg
- Transport Packaging Dimensions Height
- 50 mm
- Transport Packaging Dimensions Width
- 300 mm
- Transport Packaging Dimensions Depth
- 400 mm
- Transport packaging volume
- 6 dm³
- Pallet quantity
- 4,000 pcs
- Customs tariff
- 85365080
4 ETIM
- Mounting method
- Front fastening
- Rated operation current Ie at AC-15, 230 V
- 6 A
- Number of contacts as normally open contact
- 1
- Type of electric connection
- Screw connection
