001108108

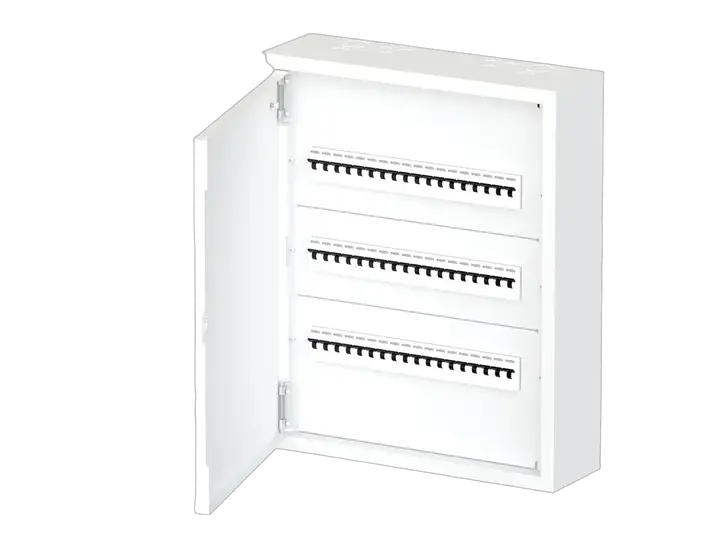

MBW18-3 Distribution box
- ETI Code:
- 001108108
- Catalogue Group:
- Metal Distribution Board DIDO MB
- Protection Class:
- I
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- IP rating:
- IP30
- Type of Installation:
- Surface mounted
- No. of modules (total/per row):
- 54/18
- Frame size (Nr. of rows):
- 3
- Enclosure base (material, color):
- metal, white
- Door (material, color):
- metal, white
- Number of PE/N terminals (connections):
- 15/25
11 Logistics
Product
- Net weight of the product
- 9.4 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400128041
- Transport packaging weight
- 9.88 kg
- Transport Packaging Dimensions Height
- 140 mm
- Transport Packaging Dimensions Width
- 556 mm
- Transport Packaging Dimensions Depth
- 456 mm
- Transport packaging volume
- 35.495 dm³
- Pallet quantity
- 18 pcs
- Customs tariff
- 85381000
16 ETIM
- Width
- 450 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Degree of protection (IP)
- IP30
- Mounting method
- Surface mounted
- Earthing terminal block
- Yes
- Number of rows
- 3
- Housing material
- Steel
- Depth
- 130 mm
- Colour
- White
- Type of door
- Single
- Cover model
- Closed
- Height
- 550 mm
- Width in number of modular spacings
- 18
- RAL-number
- 9,003
ETIM Classification – Version 9.0
