001100211
ECT 3x18MEDIAPO Distribution box
- ETI Code:
- 001100211
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rows (legacy):
- 3
- Catalogue Group:
- ECT IT distribution boxes
- Type of Installation:
- Surface mounted
- Protection Class:
- II
- Frame size (Nr. of rows):
- 3
- Door (material, color):
- plastic, white
- Enclosure base (material, color):
- plastic, white
- Glow wire test (°C):
- 650 °C
- IP rating:
- IP40
- Rated current:
- 63 A
21 Logistics
Product
- Net weight of the product
- 2.6 kg
- Net width
- 395.8 mm
- Net height
- 525.6 mm
- Net depth
- 111.6 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895837879
- Basic packaging weight
- 2.6 kg
- Basic Packaging Dimensions Height
- 396 mm
- Basic Packaging Dimensions Width
- 526 mm
- Basic Packaging Dimensions Depth
- 112 mm
- Basic packaging volume
- 23.329 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895837886
- Transport packaging weight
- 14.5 kg
- Transport Packaging Dimensions Height
- 589 mm
- Transport Packaging Dimensions Width
- 547 mm
- Transport Packaging Dimensions Depth
- 410 mm
- Transport packaging volume
- 132.095 dm³
- Pallet quantity
- 70 pcs
- Customs tariff
- 85381000
11 ETIM
- Width
- 396 mm
- Type of covering
- Door
- Model
- Distributor enclosure
- Degree of protection (IP)
- IP40
- Mounting method
- Surface mounted
- Housing material
- Plastic
- Depth
- 112 mm
- Colour
- White
- Cover model
- Closed
- Material
- Plastic
- Height
- 526 mm
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
23 Tags
001100211Distribution boxECT 3x18MEDIAPOETIBOXDistribution boards DIDODIDO-EDIDO-E MEDIASurface mountedWhite doorInternationalEnclosures, distribution boards, equipment ETIBOXDistribution boards and enclosures DIDOMultimedia boardsNo. of modules (total/per row): 0/0Glow wire test (°C): 650 °CDoor (material, color): white, plasticFrame size (Nr. of rows): 3Enclosure base (material, color): white, plasticIP rating: IP40Type of Installation: Surface mountedProtection Class: IIRated current: 63 A/63 ADistribution box Type of Installation: Surface mounted Frame size (Nr. of rows): 3 Door (material, color): white, plastic IP rating: IP40 No. of modules (total/per row): 0/0
Accessories 14 All Accessories
Similar Products 44 All Products
001100130
ECG14HMEDIA-I
- Class name
- Distribution box
- Type of Installation
- Flush-mounted/hollow wall
- Protection Class
- Frame size (Nr. of rows)
- 1
- Door (material, color)
- metal-perforated, white
001100131
ECG28HMEDIA-I
- Class name
- Distribution box
- Type of Installation
- Flush-mounted/hollow wall
- Protection Class
- Frame size (Nr. of rows)
- 2
- Door (material, color)
- metal-perforated, white
001100132
ECG42HMEDIA-I
- Class name
- Distribution box
- Type of Installation
- Flush-mounted/hollow wall
- Protection Class
- Frame size (Nr. of rows)
- 3
- Door (material, color)
- metal-perforated, white
001100133
ECG56HMEDIA-I
- Class name
- Distribution box
- Type of Installation
- Flush-mounted/hollow wall
- Protection Class
- Frame size (Nr. of rows)
- 4
- Door (material, color)
- metal-perforated, white
001100134
ECG70HMEDIA-I
- Class name
- Distribution box
- Type of Installation
- Flush-mounted/hollow wall
- Protection Class
- Frame size (Nr. of rows)
- 5
- Door (material, color)
- metal-perforated, white
001100210
ECT 2x18MEDIAPO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- Protection Class
- II
- Frame size (Nr. of rows)
- 2
- Door (material, color)
- plastic, white
001100212
ECT24MEDIAPO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- Protection Class
- II
- Frame size (Nr. of rows)
- 2
- Door (material, color)
- plastic, white
001100213
ECT36MEDIAPO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- Protection Class
- II
- Frame size (Nr. of rows)
- 3
- Door (material, color)
- plastic, white
001100214
ECT48MEDIAPO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- Protection Class
- II
- Frame size (Nr. of rows)
- 4
- Door (material, color)
- plastic, white
001100217
ECT 2x18MEDIAPT
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- Protection Class
- II
- Frame size (Nr. of rows)
- 2
- Door (material, color)
- transparent, plastic
001100218
ECM 2x18MEDIAPT
- Class name
- Distribution box
- Type of Installation
- Flush mounted
- Protection Class
- II
- Frame size (Nr. of rows)
- 2
- Door (material, color)
- transparent, plastic
001100219

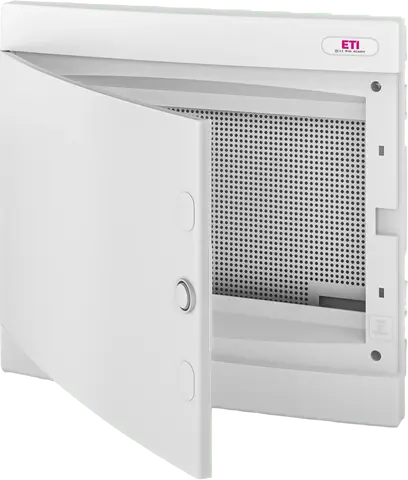

ECM 2x18MEDIAPO
