001100400

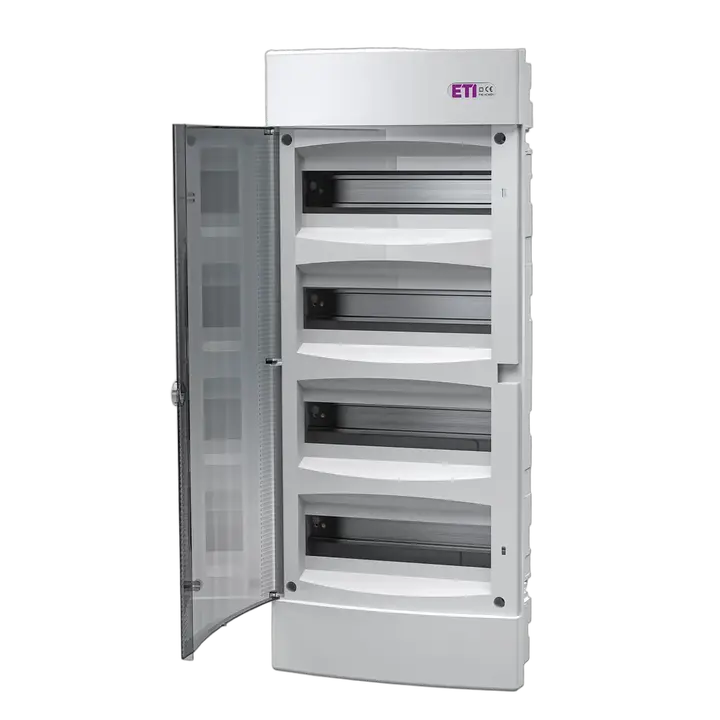

ECM48PT Distribution box
- ETI Code:
- 001100400
- Catalogue Group:
- ECM flush mounted plastic distribution boxes IP40
- Type of Installation:
- Flush mounted
- IP rating:
- IP40
- Frame size (Nr. of rows):
- 4
- No. of modules (total/per row):
- 48/12
- Door (material, color):
- plastic, transparent
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 20
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
21 Logistics
Product
- Net weight of the product
- 2.232 kg
- Net width
- 284.5 mm
- Net height
- 675.4 mm
- Net depth
- 107.8 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400092977
- Basic packaging weight
- 2.232 kg
- Basic Packaging Dimensions Height
- 676 mm
- Basic Packaging Dimensions Width
- 283 mm
- Basic Packaging Dimensions Depth
- 106 mm
- Basic packaging volume
- 0.02 m³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838400092984
- Transport packaging weight
- 12.28 kg
- Transport Packaging Dimensions Height
- 668 mm
- Transport Packaging Dimensions Width
- 577 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 115.631 dm³
- Pallet quantity
- 70 pcs
- Customs tariff
- 85381000
21 ETIM
- Built-in depth
- 68 mm
- Width
- 283 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Transparent cover/door
- Yes
- Degree of protection (IP)
- IP40
- Mounting method
- Flush-mounted
- Signal passing door
- Yes
- Earthing terminal block
- Yes
- Built-in height
- 656 mm
- Number of rows
- 4
- Housing material
- Plastic
- Depth
- 106 mm
- Built-in width
- 273 mm
- Colour
- White
- Type of door
- Single
- Cover model
- Closed
- Height
- 676 mm
- Width in number of modular spacings
- 12
- RAL-number
- 9,003
ETIM Classification – Version 9.0
