001100411

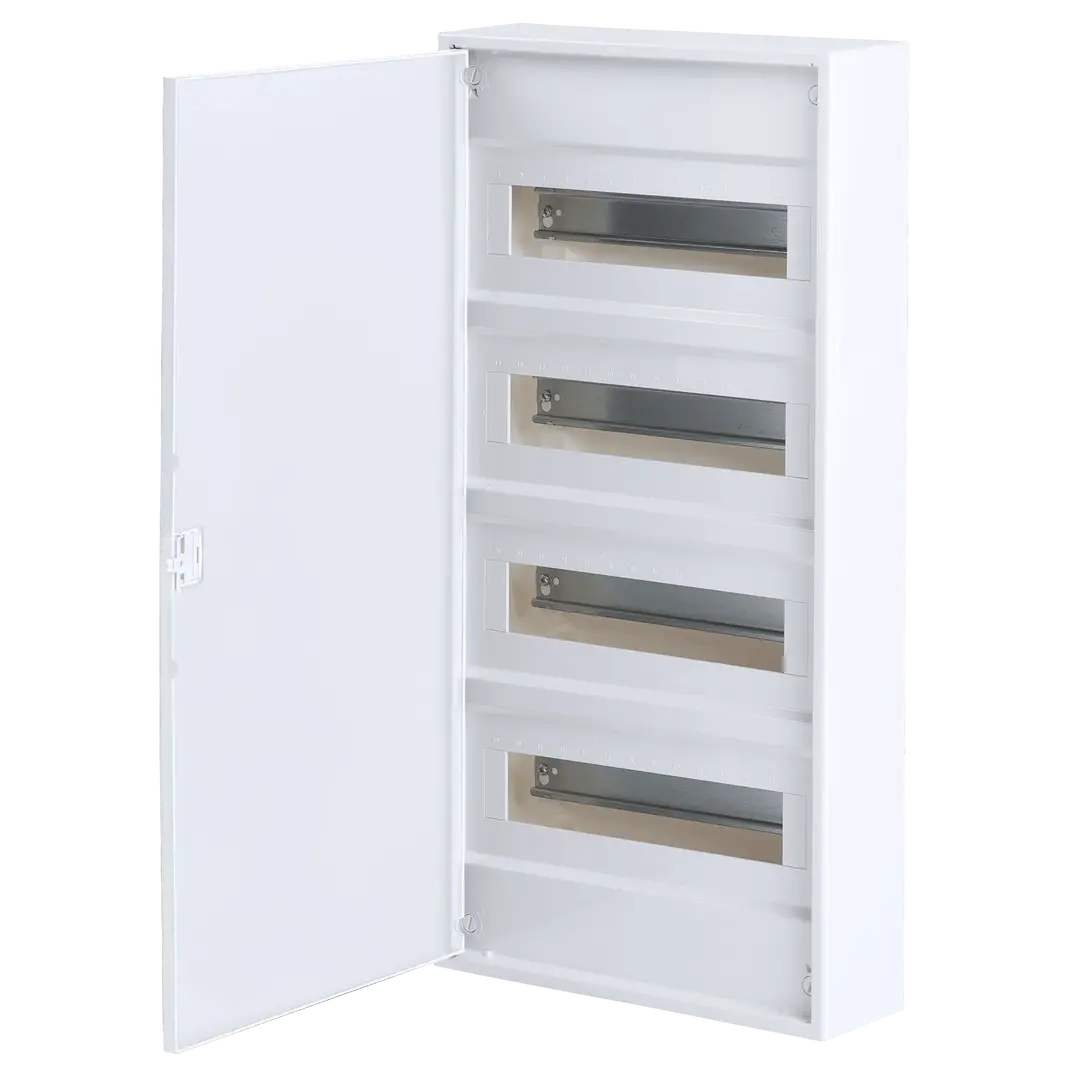

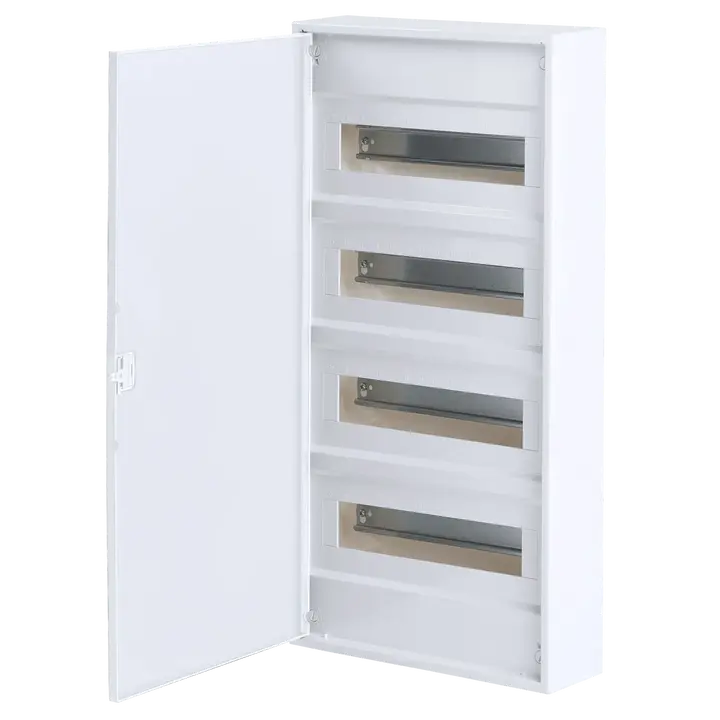

ACT48PO Distribution box
- ETI Code:
- 001100411
- Catalogue Group:
- ACT wall mounted plastic distribution boxes IP40
- Type of Installation:
- Surface mounted
- IP rating:
- IP40
- Frame size (Nr. of rows):
- 4
- No. of modules (total/per row):
- 48/12
- Door (material, color):
- plastic, white
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 20
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
21 Logistics
Product
- Net weight of the product
- 2.5 kg
- Net width
- 310.1 mm
- Net height
- 626.3 mm
- Net depth
- 96.03 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400093196
- Basic packaging weight
- 2.5 kg
- Basic Packaging Dimensions Height
- 670 mm
- Basic Packaging Dimensions Width
- 523 mm
- Basic Packaging Dimensions Depth
- 323 mm
- Basic packaging volume
- 113.182 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838400093202
- Transport packaging weight
- 14 kg
- Transport Packaging Dimensions Height
- 523 mm
- Transport Packaging Dimensions Width
- 670 mm
- Transport Packaging Dimensions Depth
- 323 mm
- Transport packaging volume
- 113.182 dm³
- Pallet quantity
- 300 pcs
- Customs tariff
- 85381000
