001100413

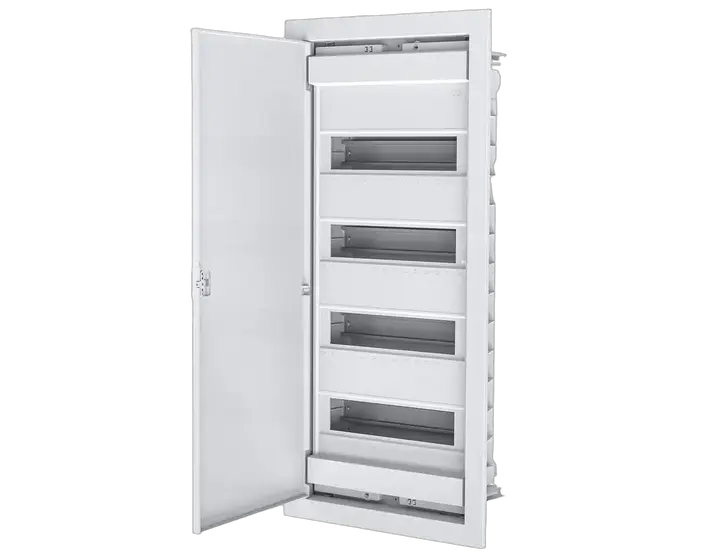

ECG56PO Distribution box
- ETI Code:
- 001100413
- Catalogue Group:
- ECG flush mounted compact distribution boxes IP40
- Type of Installation:
- Flush mounted
- IP rating:
- IP40
- Frame size (Nr. of rows):
- 4
- No. of modules (total/per row):
- 56/14
- Door (material, color):
- plastic, white
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 20
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 400 V
- Protection Class:
- II
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
14 Logistics
Product
- Net depth
- 97.88 mm
- Net weight of the product
- 3.65 kg
- Net width
- 424.6 mm
- Net height
- 716.7 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging weight
- 4.4 kg
- Transport packaging volume
- 23.885 dm³
- Transport packaging quantity
- 1 pcs
- Customs tariff
- 85381000
- Transport Packaging Dimensions Height
- 347 mm
- Transport Packaging Dimensions Width
- 717 mm
- Transport Packaging Dimensions Depth
- 96 mm
- EAN code for a transport packaging
- 3838400094322
- Pallet quantity
- 42 pcs
19 ETIM
- Built-in depth
- 87 mm
- Width
- 346 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Degree of protection (IP)
- IP40
- Mounting method
- Flush-mounted
- Earthing terminal block
- Yes
- Built-in height
- 673 mm
- Number of rows
- 4
- Housing material
- Plastic
- Depth
- 87 mm
- Built-in width
- 306 mm
- Colour
- White
- Type of door
- Single
- Cover model
- Closed
- Height
- 717 mm
- Width in number of modular spacings
- 12
- RAL-number
- 9,003
ETIM Classification – Version 9.0
