001101046

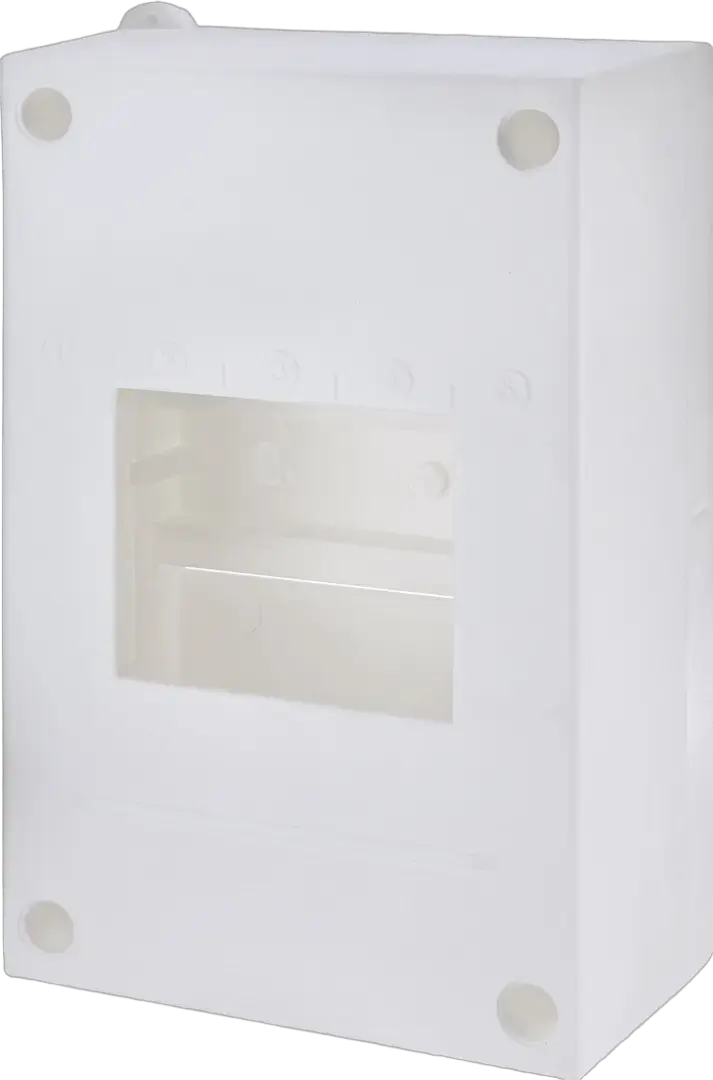

EC 3+2 Distribution box
- ETI Code:
- 001101046
- Rows (legacy):
- 1
- Catalogue Group:
- EC Surface mounted distribution board IP30
- Type of door:
- Without door
- Frame Size:
- 5
- Type of Installation:
- Surface mounted
- IP rating:
- IP30
- Frame size (Nr. of rows):
- 1
- No. of modules (total/per row):
- 5
- Door (material, color):
- white, plastic
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 4
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
21 Logistics
Product
- Net weight of the product
- 0.115 kg
- Net width
- 96.7 mm
- Net height
- 163 mm
- Net depth
- 58 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895672838
- Basic packaging weight
- 0.115 kg
- Basic Packaging Dimensions Height
- 97 mm
- Basic Packaging Dimensions Width
- 155 mm
- Basic Packaging Dimensions Depth
- 57 mm
- Basic packaging volume
- 0.857 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895672845
- Transport packaging weight
- 1.075 kg
- Transport Packaging Dimensions Height
- 304 mm
- Transport Packaging Dimensions Width
- 178 mm
- Transport Packaging Dimensions Depth
- 113 mm
- Transport packaging volume
- 6.115 dm³
- Pallet quantity
- 7,225 pcs
- Customs tariff
- 85381000
15 ETIM
- Width
- 97 mm
- DIN-rail
- Yes
- Type of covering
- None
- Neutral terminal block
- Yes
- Degree of protection (IP)
- IP30
- Mounting method
- Surface mounted
- Earthing terminal block
- Yes
- Number of rows
- 1
- Housing material
- Plastic
- Depth
- 57 mm
- Colour
- White
- Cover model
- With notch
- Height
- 155 mm
- Width in number of modular spacings
- 5
- RAL-number
- 9,003
