001101183

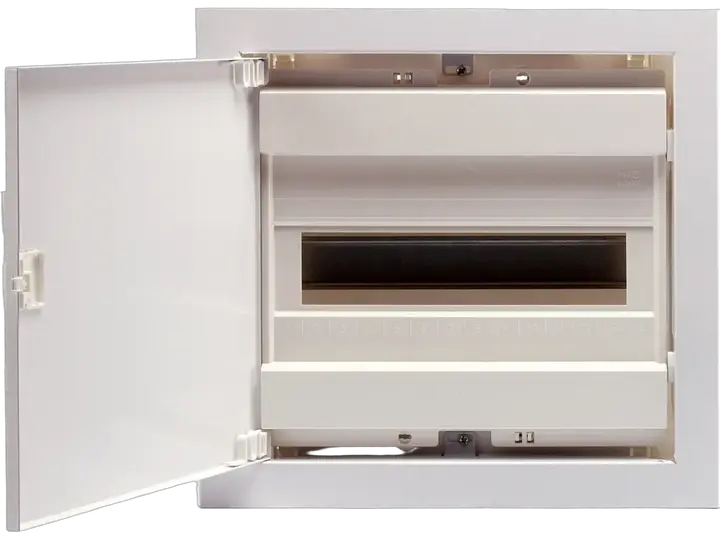

ECG14PO Distribution box
- ETI Code:
- 001101183
- Rows (legacy):
- 1
- Catalogue Group:
- ECG flush mounted compact distribution boxes IP40
- Type of door:
- Plastic door, White
- Frame Size:
- 12+2
- Type of Installation:
- Flush mounted
- IP rating:
- IP40
- Frame size (Nr. of rows):
- 1
- No. of modules (total/per row):
- 14
- Door (material, color):
- plastic, white
- Enclosure base (material, color):
- plastic, white
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 400 V
- Protection Class:
- II
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
14 Logistics
Product
- Net weight of the product
- 1.3 kg
- Net width
- 426.6 mm
- Net height
- 316.7 mm
- Net depth
- 96.52 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895839002
- Transport packaging weight
- 1.6 kg
- Transport Packaging Dimensions Height
- 325 mm
- Transport Packaging Dimensions Width
- 354 mm
- Transport Packaging Dimensions Depth
- 133 mm
- Transport packaging volume
- 15.302 dm³
- Pallet quantity
- 108 pcs
- Customs tariff
- 85381000
19 ETIM
- Built-in depth
- 87 mm
- Width
- 346 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Degree of protection (IP)
- IP40
- Mounting method
- Flush-mounted
- Earthing terminal block
- Yes
- Built-in height
- 274 mm
- Number of rows
- 1
- Housing material
- Plastic
- Depth
- 87 mm
- Built-in width
- 306 mm
- Colour
- White
- Type of door
- Single
- Cover model
- Closed
- Height
- 346 mm
- Width in number of modular spacings
- 12
- RAL-number
- 9,003
ETIM Classification – Version 9.0
