001344076

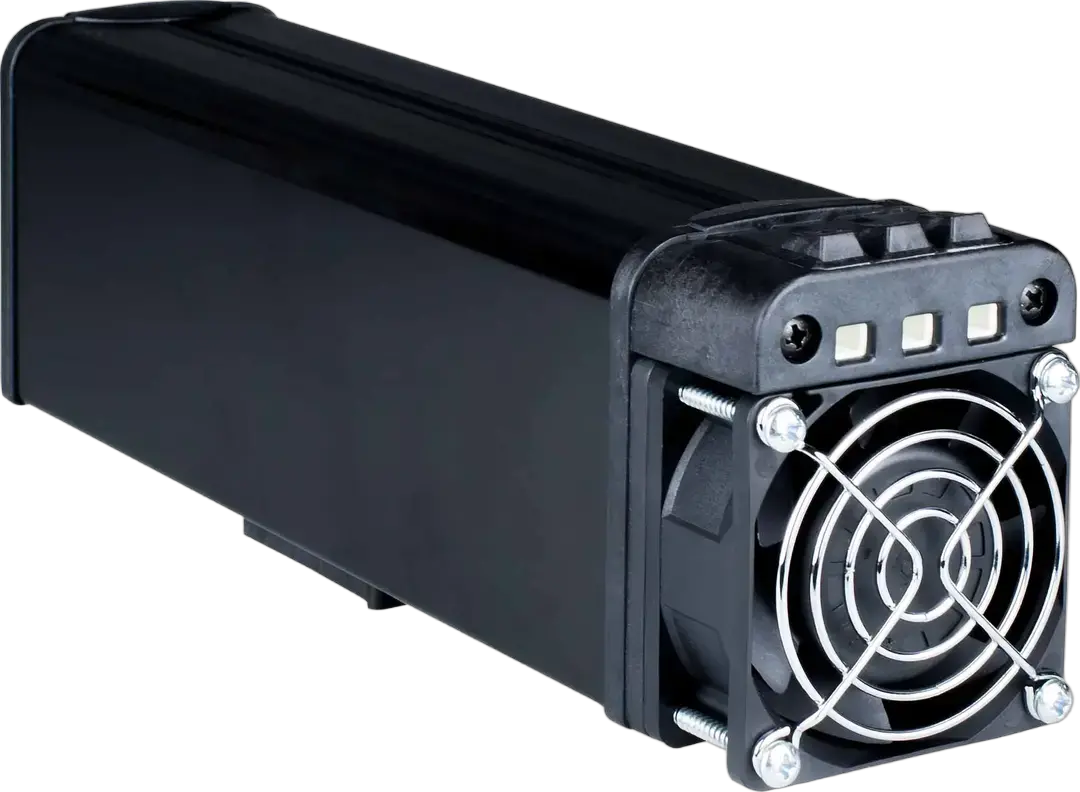

EF-HFE350 Heater
- ETI Code:
- 001344076
- Type of Installation:
- TH 35
- Max current:
- 7.4 A
- Working Temperature:
- -10-40 °C
- Approvals:
- CE
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Color:
- Black
- Width:
- 61.5 mm
- Storage Temperature:
- -40-70 °C
- IP rating:
- IP20
- Height:
- 243 mm
- Clamping range:
- 1-2.5 mm²
- Connection type:
- Terminal block
- Depth:
- 87.4 mm
- Heating power:
- 350 W
- Body material:
- Anodized aluminum
22 Logistics
Product
- EAN code for a single product
- 3838400166463
- Net weight of the product
- 1.05 kg
- Net width
- 61.5 mm
- Net height
- 242 mm
- Net depth
- 85.15 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400104076
- Basic packaging weight
- 1.05 kg
- Basic Packaging Dimensions Height
- 260 mm
- Basic Packaging Dimensions Width
- 65 mm
- Basic Packaging Dimensions Depth
- 85 mm
- Basic packaging volume
- 1.436 dm³
Transport Packaging
- Transport packaging quantity
- 11 pcs
- EAN code for a transport packaging
- 3838400104083
- Transport packaging weight
- 12.15 kg
- Transport Packaging Dimensions Height
- 320 mm
- Transport Packaging Dimensions Width
- 340 mm
- Transport Packaging Dimensions Depth
- 220 mm
- Transport packaging volume
- 23.936 dm³
- Pallet quantity
- 451 pcs
- Customs tariff
- 85168080
