Installation channels

Introduction

Installation channels are essential components in electrical systems, designed to provide secure support and insulation for busbars and other current-carrying conductors. They are also referred to as support insulators. These channels are crucial for maintaining the safety and organization of electrical installations.

Image of B 25x40 T (2m)

B 25x40 T (2m)

Class name: Installation channel
Height: 40 mm
Width: 25 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 25x60 T (2m)

B 25x60 T (2m)

Class name: Installation channel
Height: 60 mm
Width: 25 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 25x80 T (2m)

B 25x80 T (2m)

Class name: Installation channel
Height: 80 mm
Width: 25 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 40x40 T (2m)

B 40x40 T (2m)

Class name: Installation channel
Height: 40 mm
Width: 40 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

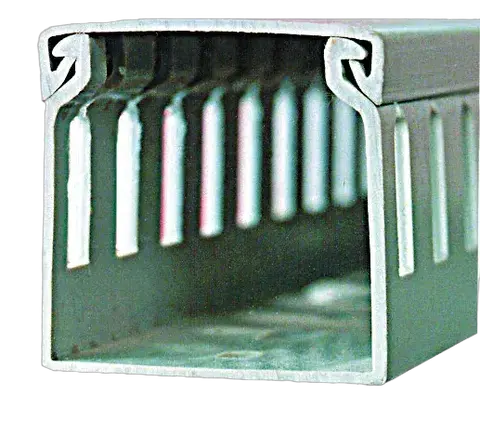

Image of B 40x60 T (2m)

B 40x60 T (2m)

Class name: Installation channel
Height: 60 mm
Width: 40 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 40x80 T (2m)

B 40x80 T (2m)

Class name: Installation channel
Height: 80 mm
Width: 40 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 40x100 T (2m)

B 40x100 T (2m)

Class name: Installation channel
Height: 100 mm
Width: 40 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 48x100 T (2m)

B 48x100 T (2m)

Class name: Installation channel
Height: 100 mm
Width: 48 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 55x100 T

B 55x100 T

Class name: Installation channel
Height: 100 mm
Width: 55 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 60x40 T (2m)

B 60x40 T (2m)

Class name: Installation channel
Height: 40 mm
Width: 60 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 60x60 T (2m)

B 60x60 T (2m)

Class name: Installation channel
Height: 60 mm
Width: 60 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 60x80 T (2m)

B 60x80 T (2m)

Class name: Installation channel
Height: 80 mm
Width: 60 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 60x100 T (2m)

B 60x100 T (2m)

Class name: Installation channel
Height: 100 mm
Width: 60 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 75x100 T (2m)

B 75x100 T (2m)

Class name: Installation channel
Height: 100 mm
Width: 75 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 80x40 T (2m)

B 80x40 T (2m)

Class name: Installation channel
Height: 40 mm
Width: 80 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 80x60 T (2m)

B 80x60 T (2m)

Class name: Installation channel
Height: 60 mm
Width: 80 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

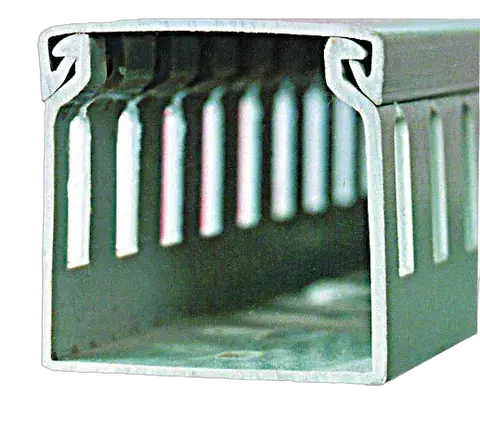

Image of B 80x80 T (2m)

B 80x80 T (2m)

Class name: Installation channel
Height: 80 mm
Width: 80 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 80x100 T (2m)

B 80x100 T (2m)

Class name: Installation channel
Height: 100 mm
Width: 80 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 100x60 T (2m)

B 100x60 T (2m)

Class name: Installation channel
Height: 60 mm
Width: 100 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels

Image of B 100x80 T (2m)

B 100x80 T (2m)

Class name: Installation channel
Height: 80 mm
Width: 100 mm
Depth: 2,000 mm
Material: PVC
Working Temperature: 70 °C
Type accessories: Installation channels
