Section rails

Introduction

Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

IZ16/1F/3mod - 36mm

Class name: Insulated busbar
Number of poles: 1
Function: Section rails
Busbar type: FORK
Rated current: 100 A
Rated cross section: 16 mm²
Lenght in modules: 1x3
No. Of Phases: 1

IZ16/1F/4mod - 36mm

Class name: Insulated busbar
Number of poles: 1
Function: Section rails
Busbar type: FORK
Rated current: 100 A
Rated cross section: 16 mm²
Lenght in modules: 1x4
No. Of Phases: 1

IZ16/1F/2mod - 36mm

Class name: Insulated busbar
Number of poles: 1
Function: Section rails
Busbar type: FORK
Rated current: 100 A
Rated cross section: 16 mm²
Lenght in modules: 1x2
No. Of Phases: 1

PE 2/6

Class name: Connection clamp
Number of poles: 3+N
Function: Terminal for protective conductor
Type accessories: Connection clamp

PE 2/8

Class name: Connection clamp
Number of poles: 3+N
Function: Terminal for protective conductor
Type accessories: Connection clamp

PE 2/12

Class name: Connection clamp
Number of poles: 3+N
Function: Terminal for protective conductor
Type accessories: Connection clamp

PE 2/18

Class name: Connection clamp
Number of poles: 3+N
Function: Terminal for protective conductor
Type accessories: Connection clamp

IZ10/L1NL2NL3N/12E

Class name: Insulated busbar
Number of poles: 3+N
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x12
No. Of Phases: 3
Voltage type: AC/DC
Rated AC voltage: 500
Rated DC voltage: 500
Type accessories: Section rails

IZ10/L1NL2NL3N/54E

Class name: Insulated busbar
Number of poles: 3+N
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x54
No. Of Phases: 3
Voltage type: AC/DC
Rated AC voltage: 500
Rated DC voltage: 500
Type accessories: Section rails

IZ16/L1NL2NL3N/12

Class name: Insulated busbar
Number of poles: 3+N
Function: Section rails
Busbar type: FORK
Rated current: 100 A
Rated cross section: 16 mm²
Lenght in modules: 1x12
No. Of Phases: 3
Voltage type: AC/DC
Rated AC voltage: 500
Rated DC voltage: 500
Type accessories: Section rails

IZ16/L1NL2NL3N/18

Class name: Insulated busbar
Number of poles: 3+N
Function: Section rails
Busbar type: FORK
Rated current: 100 A
Rated cross section: 16 mm²
Lenght in modules: 1x18
No. Of Phases: 4
Rated AC voltage: 500
Rated DC voltage: 500
Type accessories: Section rails

IZ10/L1NL2NL3N/18

Class name: Insulated busbar
Number of poles: 3+N
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x18
No. Of Phases: 3
Voltage type: AC/DC
Rated AC voltage: 500
Rated DC voltage: 500
Type accessories: Section rails

IZ16/L1NL2NL3N/54

Class name: Insulated busbar
Number of poles: 3+N
Function: Section rails
Busbar type: FORK
Rated current: 100 A
Rated cross section: 16-2 mm²
Lenght in modules: 1x54
No. Of Phases: 3
Voltage type: AC/DC
Rated AC voltage: 500
Rated DC voltage: 500
Type accessories: Section rails

IZM63-2

Class name: Cu rail
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x6
No. Of Phases: 3
Rated AC voltage: 690
Rated DC voltage: 690
Type accessories: Cu busbar

IZM63-3

Class name: Cu rail
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x9
No. Of Phases: 3
Rated AC voltage: 690
Rated DC voltage: 690
Type accessories: Cu busbar

IZM63-4

Class name: Cu rail
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x12
No. Of Phases: 3
Rated AC voltage: 690
Rated DC voltage: 690
Type accessories: Cu busbar

IZM63-5

Class name: Cu rail
Function: Section rails
Busbar type: FORK
Rated current: 63 A
Rated cross section: 10 mm²
Lenght in modules: 1x15
No. Of Phases: 3
Rated AC voltage: 690
Rated DC voltage: 690
Type accessories: Cu busbar

IZ16/2F/56 18mm

Class name: Cu rail
Number of poles: 2
Function: Section rails
Busbar type: FORK
Type accessories: Cu rail

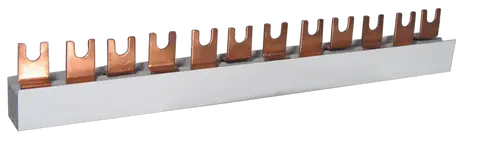

IZ16/3F/57 18mm

Class name: Cu rail
Number of poles: 3
Function: Section rails
Busbar type: FORK
Type accessories: Cu rail

IZ16/4F/56 18mm

Class name: Cu rail
Number of poles: 4
Function: Section rails
Busbar type: FORK
Type accessories: Cu rail
