002651009

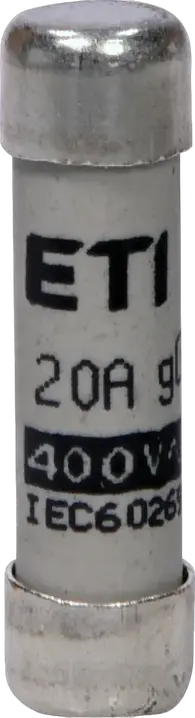

CH8x32 gG 20A/400V Fuse link
- ETI Code:
- 002651009
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 8x32
- Rated current:
- 20 A
- Rated AC voltage:
- 400 V
- Time-Current Characteristic:
- gG
- Breaking capacity AC:
- 20 kA
- Application:
- For cable protection
- Power dissipation:
- 2 W
- Standards:
- IEC 60269-1, IEC 60269-2
22 Logistics
Product
- EAN code for a single product
- 3838400115799
- Net weight of the product
- 0.005 kg
- Net width
- 8.5 mm
- Net height
- 32 mm
- Net depth
- 8.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838400094469
- Basic packaging weight
- 0.047 kg
- Basic Packaging Dimensions Height
- 10.5 mm
- Basic Packaging Dimensions Width
- 70 mm
- Basic Packaging Dimensions Depth
- 46 mm
- Basic packaging volume
- 0.034 dm³
Transport Packaging
- Transport packaging quantity
- 2,500 pcs
- EAN code for a transport packaging
- 3838400094476
- Transport packaging weight
- 12.154 kg
- Transport Packaging Dimensions Height
- 140 mm
- Transport Packaging Dimensions Width
- 290 mm
- Transport Packaging Dimensions Depth
- 390 mm
- Transport packaging volume
- 15.834 dm³
- Pallet quantity
- 80,000 pcs
- Customs tariff
- 85361050
8 ETIM
- Voltage type
- AC
- Size
- 8x32 mm
- Breaking capacity
- 20 kA
- Rated voltage
- 400 V
- Rated current
- 20 A
- Utilization category
- Other
- Rated operating frequency(Min)
- 50 Hz
- Rated operating frequency(Max)
- 50 Hz
ETIM Classification – Version 9.0
3 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
