002540103

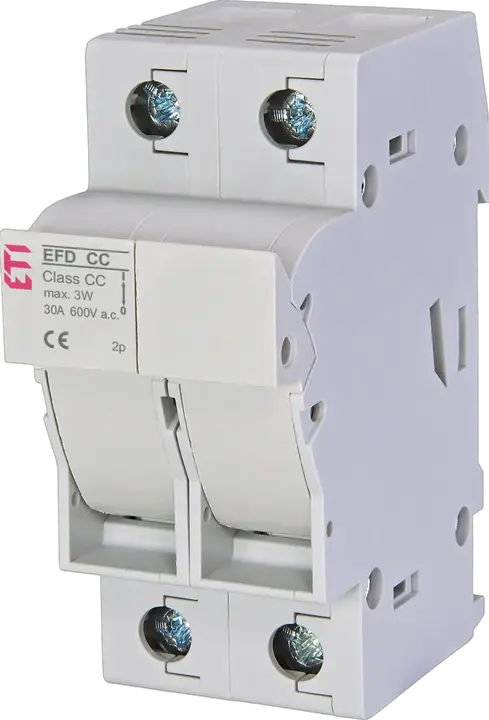

EFD CC 2p Fuse - base
- ETI Code:
- 002540103
- To use with:
- CH fuse-links
- Product group:
- LV-fuse-switch disconnector
- Catalogue Group:
- LV-fuse-switch disconnector
- Overvoltage Category:
- III
- Type description:
- EFD
- Size:
- CC
- Type of Installation:
- DIN rail
- Number of poles:
- 2
- Rated AC voltage:
- 600 V
- Rated current:
- 30 A
- Ambient temperature:
- -5/40 °C
- Max Permissable Power Dissipation per Fuse Link:
- 3 W
- Standards:
- IEC60947-1, IEC60947-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
22 Logistics
Product
- EAN code for a single product
- 3838400032768
- Net weight of the product
- 123 g
- Net width
- 35 mm
- Net height
- 82.9 mm
- Net depth
- 64.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 6 pcs
- EAN code for a basic packaging
- 3838895711483
- Basic packaging weight
- 0.794 kg
- Basic Packaging Dimensions Height
- 79 mm
- Basic Packaging Dimensions Width
- 220 mm
- Basic Packaging Dimensions Depth
- 91 mm
- Basic packaging volume
- 1.582 dm³
Transport Packaging
- Transport packaging quantity
- 54 pcs
- EAN code for a transport packaging
- 3838895711490
- Transport packaging weight
- 7.499 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 2,808 pcs
- Customs tariff
- 85389099
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
