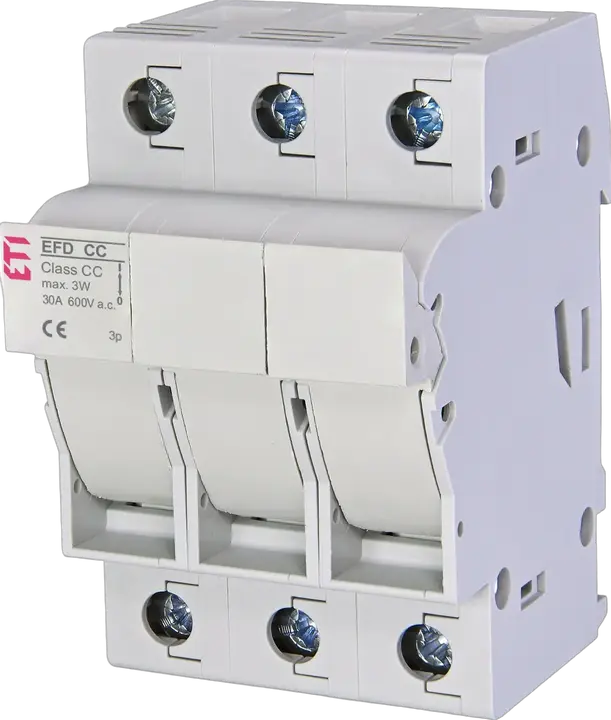

EFD CC 3p AD Fuse - base
- ETI Code:
- 002540404
- Catalogue Group:
- LV-fuse-switch disconnector
- To use with:
- CH fuse-links
- Product group:
- LV-fuse-switch disconnector
- Overvoltage Category:
- III
- Type description:
- EFD
- Size:
- CC
- Type of Installation:
- DIN rail
- Number of poles:
- 3
- Rated AC voltage:
- 600 V
- Rated current:
- 30 A
- Ambient temperature:
- -5/40 °C
- Max Permissable Power Dissipation per Fuse Link:
- 3 W
- Standards:
- IEC60947-1, IEC60947-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
22 Logistics
Product
- Net depth
- 71.25 mm
- Net weight of the product
- 197 g
- Net width
- 52.5 mm
- Net height
- 81 mm
- Stock unit of measure
- pcs
- EAN code for a single product
- 3838400032829
Basic Packaging
- EAN code for a basic packaging
- 3838895711629
- Basic packaging weight
- 0.844 kg
- Basic Packaging Dimensions Depth
- 91 mm
- Basic Packaging Dimensions Height
- 79 mm
- Basic packaging volume
- 1.582 dm³
- Basic Packaging Dimensions Width
- 220 mm
- Basic packaging quantity
- 4 pcs
Transport Packaging
- Transport packaging weight
- 7.949 kg
- Transport packaging volume
- 0.017 m³
- Transport packaging quantity
- 36 pcs
- Customs tariff
- 85389099
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- EAN code for a transport packaging
- 3838895711636
- Pallet quantity
- 1,872 pcs
