002550001
Obsolete

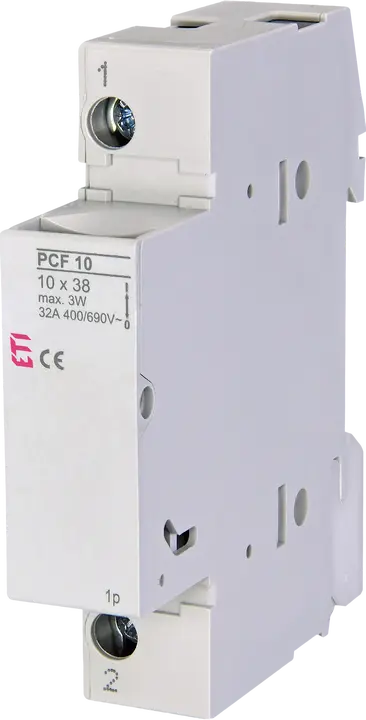

*PCF 10 1p Fuse disconnector
- ETI Code:
- 002550001
- To use with:
- CH fuse-links
- Product group:
- LV-fuse-switch disconnector
- Catalogue Group:
- LV-fuse-switch disconnector
- Overvoltage Category:
- III
- Size:
- 10x38
- Type of Installation:
- TH 35
- Number of poles:
- 1
- Rated AC voltage:
- 690 V
- Utilization category:
- AC-22B
- Rated current:
- 32 A
- Ambient temperature:
- -5/40 °C
- Max Permissable Power Dissipation per Fuse Link:
- 3 W
- Standards:
- IEC60947-1, IEC60947-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
22 Logistics
Product
- EAN code for a single product
- 3838895906438
- Net weight of the product
- 0.063 kg
- Net width
- 17.8 mm
- Net height
- 85.3 mm
- Net depth
- 70.86 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895327103
- Basic packaging weight
- 0.812 kg
- Basic Packaging Dimensions Height
- 79 mm
- Basic Packaging Dimensions Width
- 220 mm
- Basic Packaging Dimensions Depth
- 91 mm
- Basic packaging volume
- 1.582 dm³
Transport Packaging
- Transport packaging quantity
- 108 pcs
- EAN code for a transport packaging
- 3838895327110
- Transport packaging weight
- 7.661 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 5,616 pcs
- Customs tariff
- 85389099
3 ETIM
- For fuse size
- 10x38 mm
- Mounting method
- Other
- Number of poles
- 1
ETIM Classification – Version 9.0
