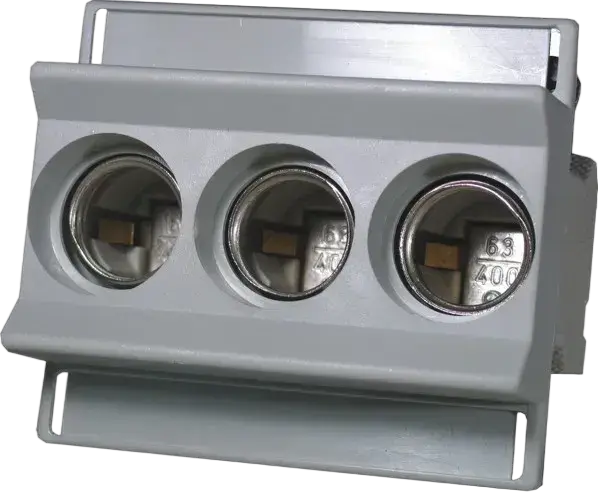

D02 E18 63A V M5-K 3p Fuse - base
- ETI Code:
- 002222022
- To use with:
- D0 fuse-links
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- D02 With protection cover
- Type of Installation:
- Base plate mounting
- Size:
- D02
- Product group:
- LV-fuse base
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Number of poles:
- 3
7 Documents
16 Logistics
Product
- EAN code for a single product
- 3838400030061
- Net weight of the product
- 0.294 kg
- Net width
- 81.4 mm
- Net height
- 71.5 mm
- Net depth
- 56 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895007548
- Basic packaging weight
- 1.43 kg
- Basic packaging volume
- 1.987 dm³
Transport Packaging
- Transport packaging quantity
- 40 pcs
- EAN code for a transport packaging
- 3838895716914
- Transport packaging weight
- 13 kg
- Transport packaging volume
- 26.1 dm³
- Pallet quantity
- 1,200 pcs
- Customs tariff
- 85389099
7 ETIM
- Mounting method
- Bottom mounting
- Construction size
- D02
- Version with cover
- Yes
- Number of poles
- 3
- Rated voltage
- 400 V
- Rated current
- 63 A
- Material
- Porcelain
