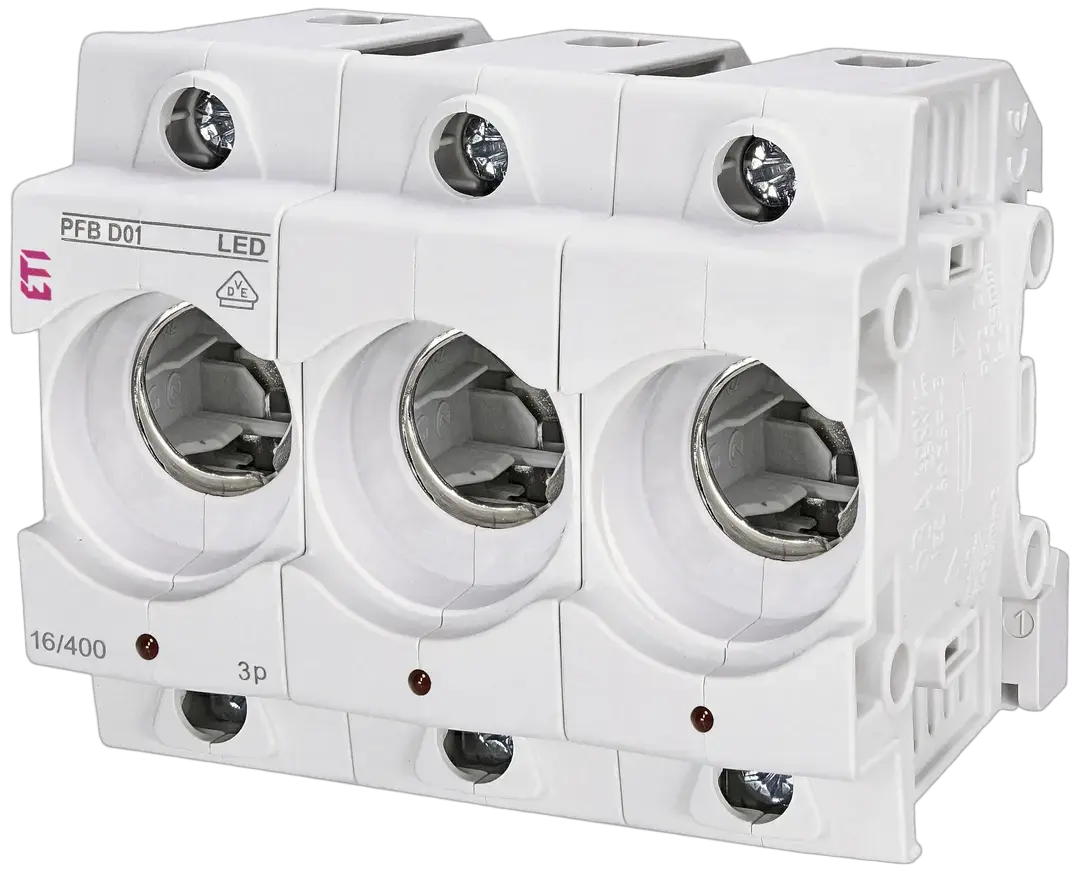

PFB D01 3p LED Fuse - base
- ETI Code:
- 002510014
- To use with:
- D0 fuse-links
- Indicator:
- LED
- Breaking capacity AC:
- 50 kA
- Catalogue Group:
- LV-fuse base
- Ambient temperature:
- -5/40 °C
- Standards:
- IEC60269-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
- Type description:
- PFB
- Type of Installation:
- DIN rail
- Size:
- D01
- Product group:
- LV-fuse base
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 250 V
- Rated current:
- 16 A
- Number of poles:
- 3
7 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895844211
- Net weight of the product
- 177 g
- Net width
- 79.8 mm
- Net height
- 68 mm
- Net depth
- 59.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895811756
- Basic packaging weight
- 0.939 kg
- Basic Packaging Dimensions Height
- 0.064 m
- Basic Packaging Dimensions Width
- 0.34 m
- Basic Packaging Dimensions Depth
- 0.084 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 60 pcs
- EAN code for a transport packaging
- 3838895811763
- Transport packaging weight
- 11.818 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.368 m
- Transport Packaging Dimensions Depth
- 0.368 m
- Transport packaging volume
- 0.029 m³
- Pallet quantity
- 1,440 pcs
- Customs tariff
- 85389099
5 ETIM
- Construction size
- D01
- Number of poles
- 3
- Rated voltage
- 400 V
- Rated current
- 16 A
- Material
- Plastic
